Mn13Cr2 Alloy Steel Cast Ball Mill Liner for Φ2.1×5.7m Ball Mill

Product Introduction

Product Introduction

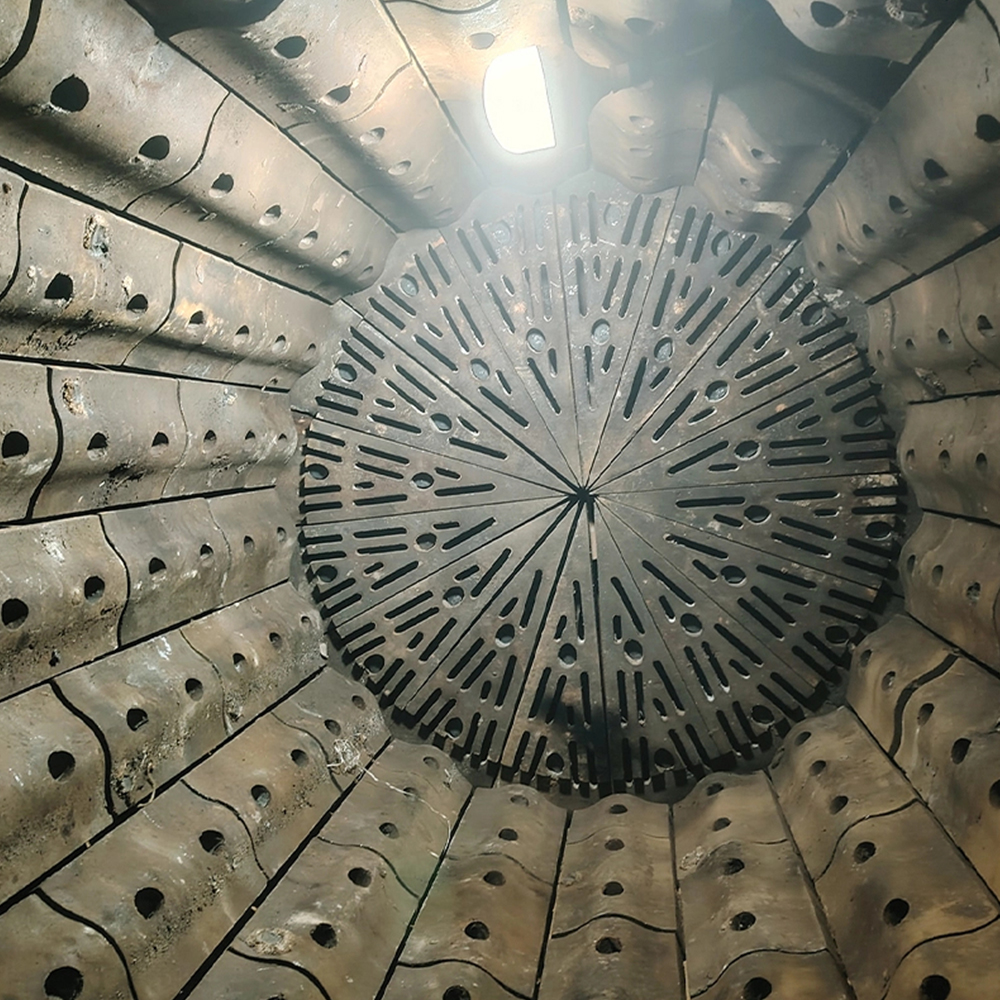

Mill lining boards are installed in grinding ball mills & SAG mills to protect the mill cylinder was abrased & breakage by the grinding process. Mill liners are very important wear parts for mill machinery in Mining / Cement and other industries. These protective linings are made of Alloy steel /Ceramics / Rubbers and composite materials.

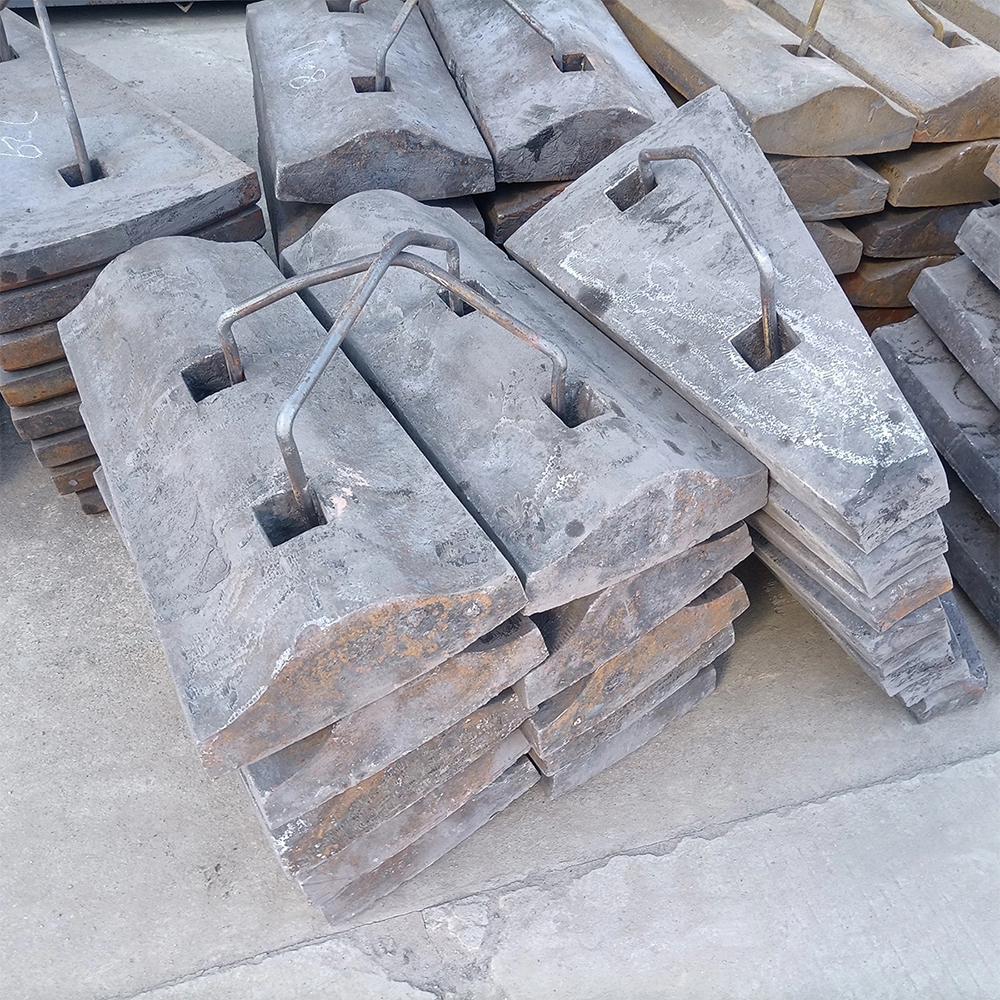

Specifications:

Name of  Liner

   Ball Mill Size:  Φ2100 x 5700 mm

  Pcs of each set

 Weight (kg)

1.

Feed inlet liner

16

2.

Discharge end liner

16

3.

Mill cylinder liner (two holes)

160

4.

Mill cylinder liner (one hole)

20

5.

Cone-shaped cylinder liner

20

    TOTAL

232

25000 kgs

Alloy Material:  Mn13Cr2     Quality Standard:  GB/T 5611-2023

Reference Price:  FOB Shanghai /Ningbo port; price is USD 32,000 per set.

  • Core Features
  • Application Scenarios
  • Product Characteristics
  • Customization Options

Product Advantage

The quality is relatively stable
High Mn-Cr alloy steel (M13Cr2 - M18Cr2) cast ball mill lining board has been used with the lowest cost and longer usage time than other alloy steel / Ceramics & Rubbers materials.
NGZR has more than 10 years of experience in R&D / Manufacturing / After-sales srevice the High Mn casting mill liners for Mining and Cement Industries. For all mill machinery diameter sizes less than 6 meters, we guarantee the product quality and operating life for all customers.

Lower usage cost

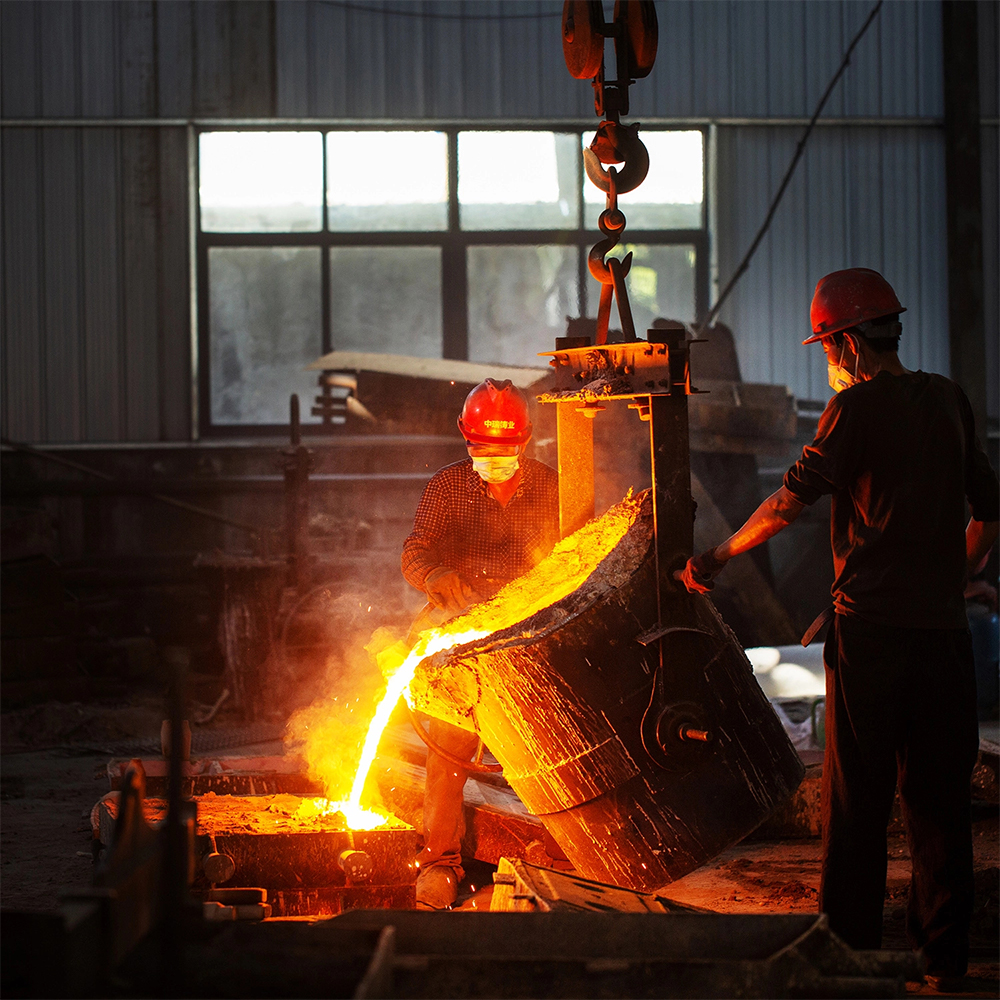

High Manganese casting ball mill liner plates have long usage life with stable quality. Because   NGZR has large production capacity and an advanced lost foam process, full Automatic precision casting line, we can provide more competitively priced products to all customers. So customers will get lower production unit cost than before.

Customized alloy Steel composition

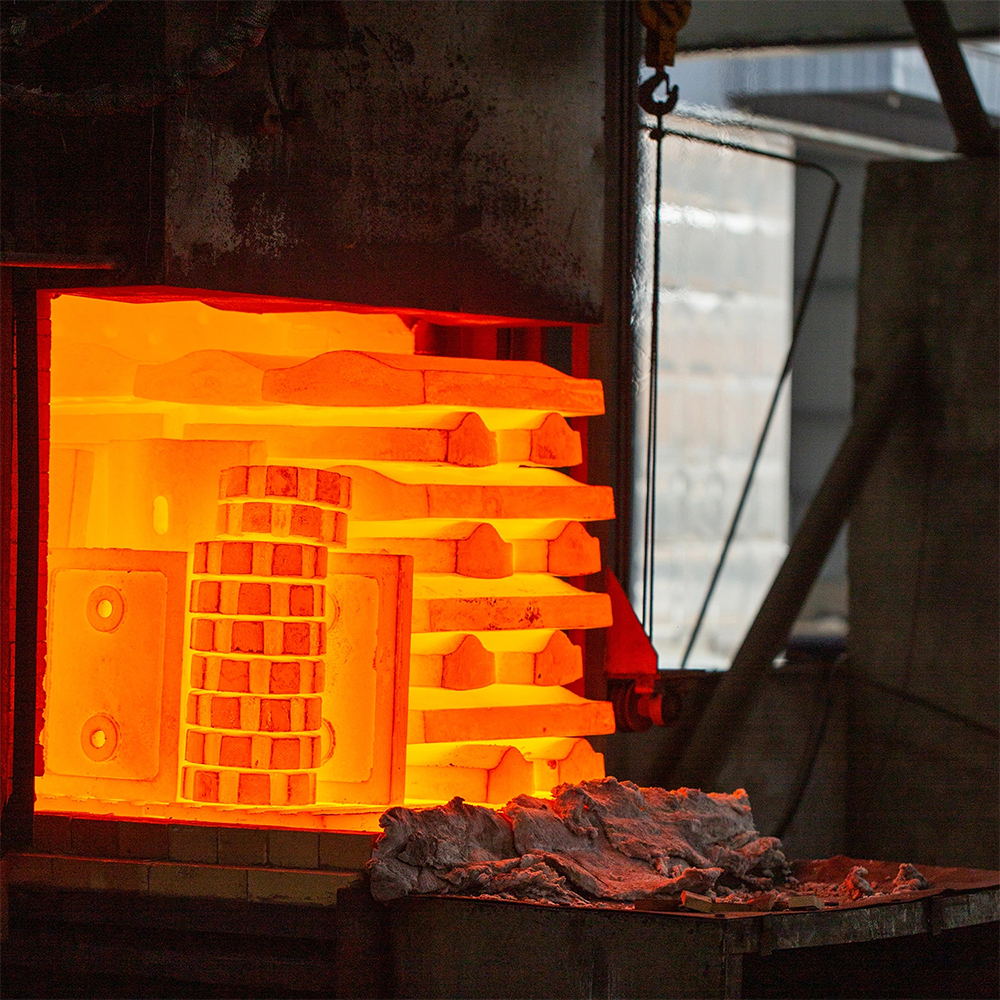

NGZR foundry was able to match the client’s requirements to readjust the Chemical Composition of alloy steel content (Mn: 11-18%), or increase other special metallic elements (Mo /Cu /Ni etc), through special heat-treatment processing, which can help this casting liner achieve special Mechanical performance, to follow different customers’ different working conditions.

Customized drawing size and shape
NGZR foundry can follow the customer’s drawing of exist mill liner to customize. Also, we can revise the existing mill liner plate shape/thickness and wearing quality to help the customer get lower liner cost and higher production efficiency.

Door-to-door measurement & Installation Guide
If the customer can’t provide drawings of the existing mill lining, NGZR will arrange for our service engineer to come at no charge to measure the size and design of the one-stop service.
If the customer requires, NGZR will provide door-to-door installation serivce with pay charge.
