Mn-Cr Alloy Cast Jaw Crusher Wear Parts: Jaw Plates & Cheek Plates (Side Liners)

Product Introduction

Product Overview

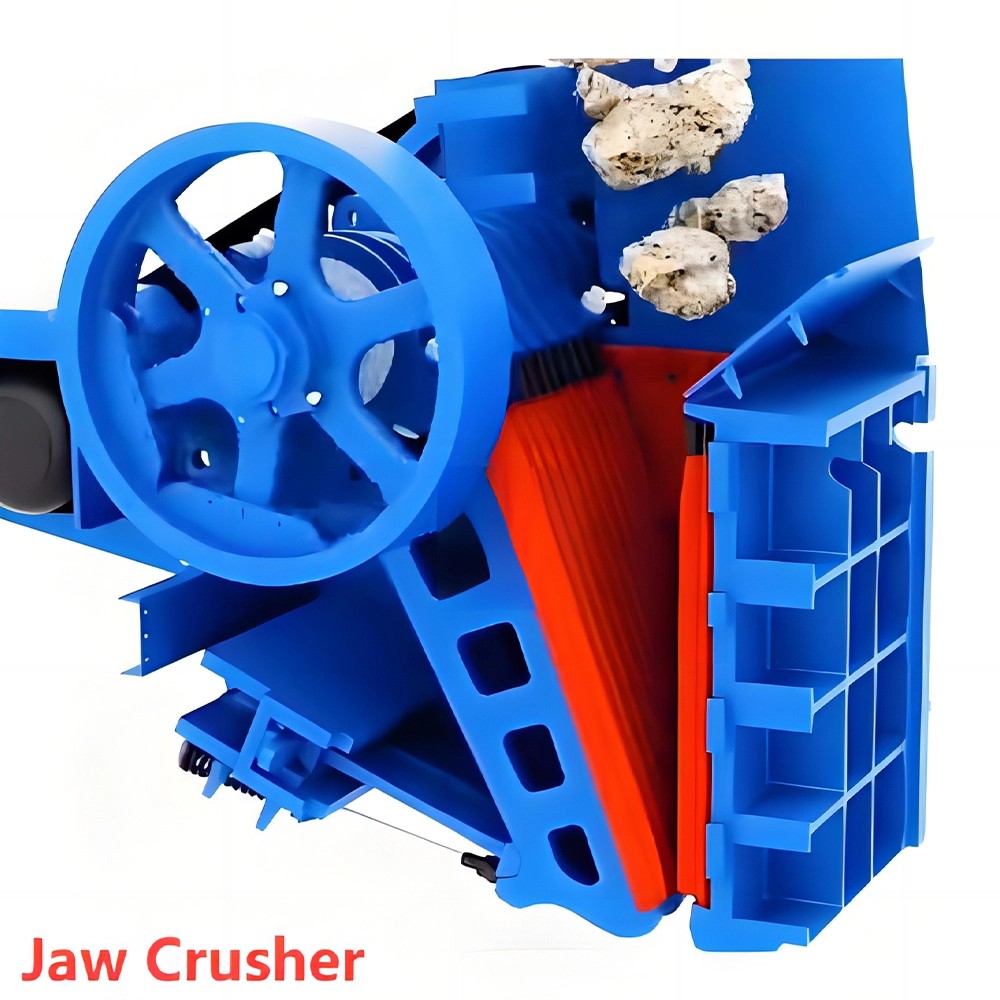

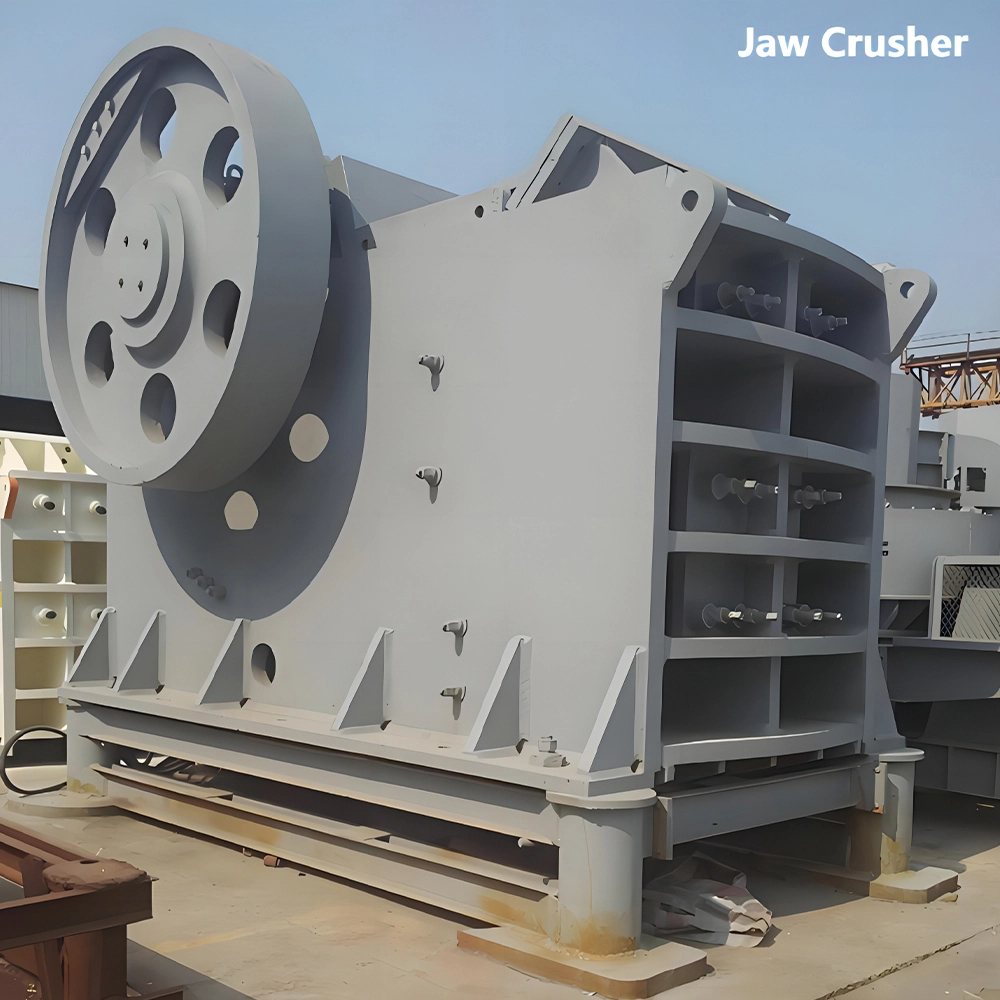

Minerals of every hardness can be given primary or secondary crushing by a jaw crusher, a machine that works through the squeezing and bending action of two jaw plates.

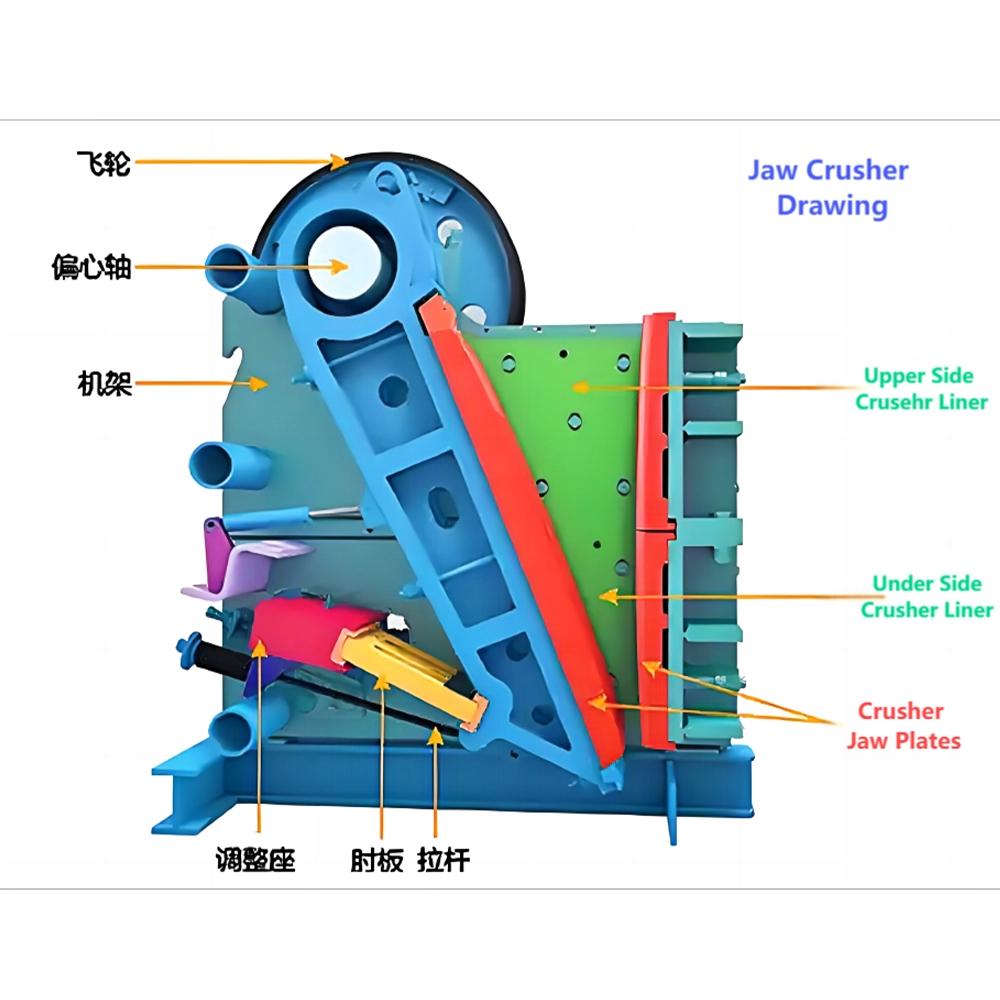

A fixed jaw plate and a movable jaw plate form this jaw crusher. The ore is crushed as the plates move together, and when they part, blocks smaller than the discharge port fall out from the bottom.
The crushing action is intermittent. Thanks to its simple structure, reliable operation and capacity to crush hard materials, this crusher sees wide use in mineral processing, building materials, silicates, ceramics and other industries.

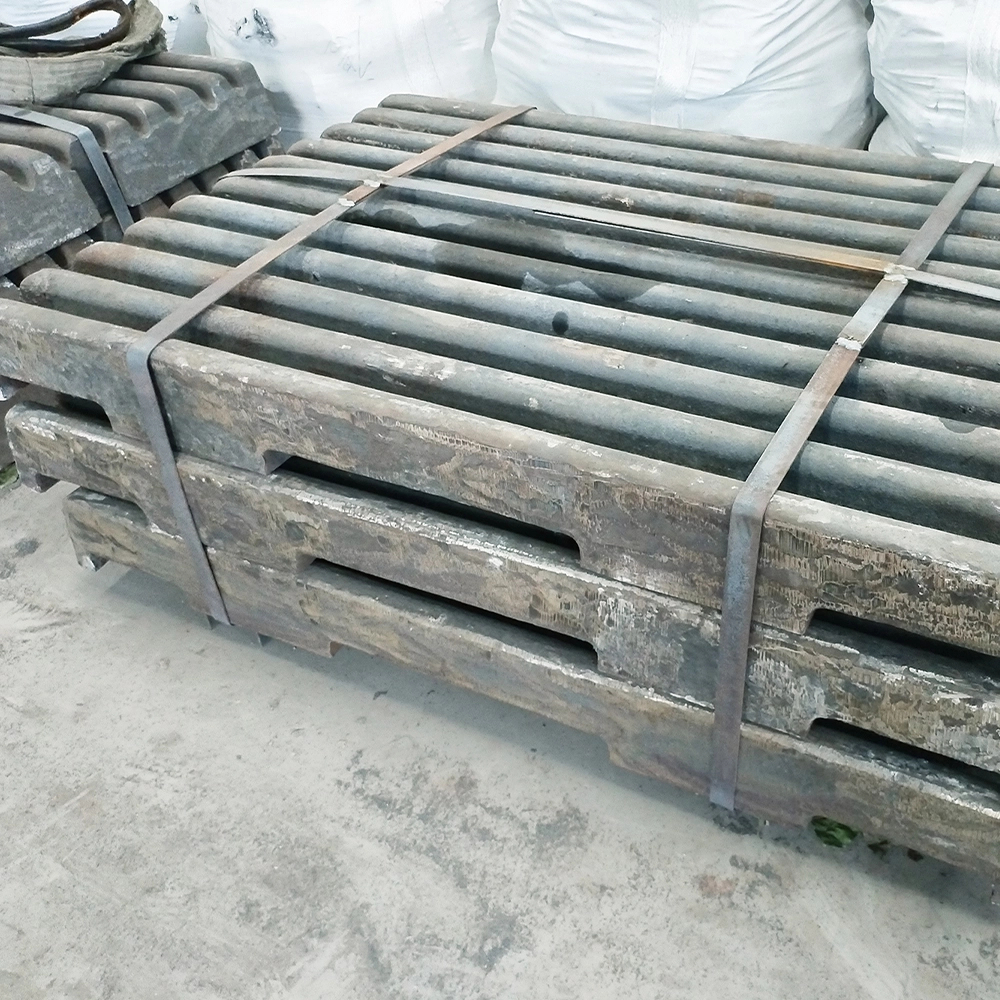

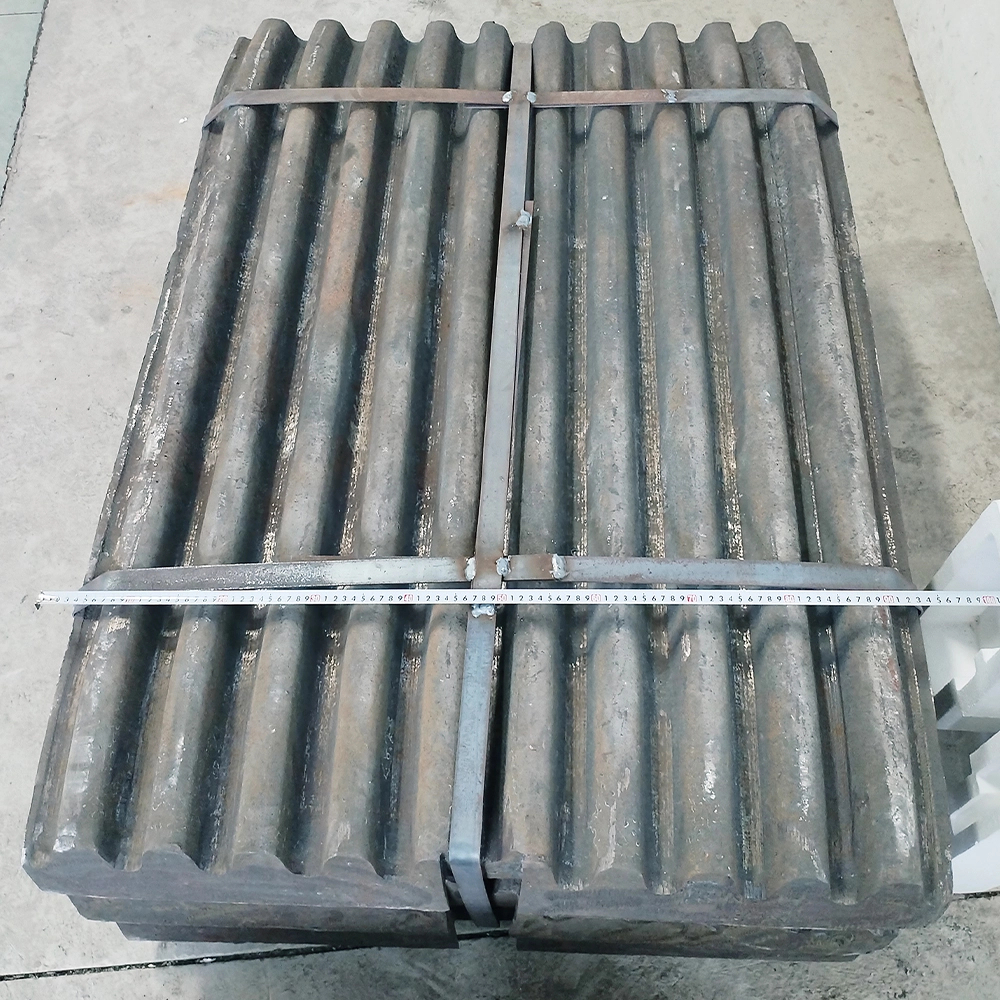

1. Jaw plates
Jaw plates are consumable spare parts of jaw crusher machinery, and they crush and smash minerals, rocks and other raw materials. They should last longer, so they need high hardness with a low wear rate and breakage rate. For that reason they are made from high manganese alloy or high chromium alloy, cast on an advanced automatic casting line and given a special heat treatment, which improves the quality and life of this product!

2. Side liner
This wear part for the jaw crusher shields the machine from damage by ore impact while it runs. It should last longer, so it needs high hardness along with a low wear rate and breakage rate.

PREV：No previous article NEXT：No next article

Core Features
Product Characteristics
Customization Options

Key Advantages

Fairly consistent quality
Compared with other materials, cast wear parts of High Manganese-Chromium alloy steel have a longer record of use.
With more than 10 years in R&D, manufacturing and after-sales service, NGZR is experienced in High Mn and High Cr cast wear parts, such as high Chrome cast grinding media, high Mn-Cr alloy cast mill liners, crusher liners and Jaw plates, for the mining and cement industries.

Reduced operating cost
Cast wear parts of Mn-Cr alloy steel, such as jaw plates and liners, last long and keep a stable quality. NGZR has a large production capacity, with an advanced lost foam process, a fully automatic precision casting line and a manual resin-sand wooden mould casting line. We can therefore price our products more competitively for all customers and help them bring their unit production cost below its earlier level.

Tailored alloy steel composition
To meet customer needs, the NGZR foundry can adjust the chemical composition of the alloy steel (Mn /Cr) or add other special metallic elements (Si /Mo /Cu /Ni, etc.). Combined with special heat treatment, this gives the cast crusher liners and Jaw plates particular mechanical properties that suit each customer's different working conditions.

Custom drawings, sizes and shapes
The NGZR foundry can make customized jaw crusher wear parts from the customer's drawings of existing parts. We can also modify the shape, thickness and wear quality of existing wear parts, so customers spend less on wear parts and gain higher production efficiency.

On-site measurement & installation guidance
Should a customer be unable to supply drawings of the existing hammer crusher, NGZR will send a service engineer to take measurements and handle the design as a one-stop service, free of charge.
On request, NGZR will provide door-to-door installation guidance for a fee.

Anhui Ningguo Zhongrui Wear-Resistant Materials Co., Ltd.

About Us

Anhui Province's Ningguo City Zhongrui Wear-resistant Materials Co., Ltd. is located in Ningguo City, which is known as the capital of wear-resistant castings in China. The company mainly produces high-chromium, medium-chromium, and low-chromium alloy cast balls, cast sections; ball mill liners; crusher guards, hammers, etc. It also has a casting ball workshop, casting workshop, white mold cutting workshop, heat treatment workshop, raw material workshop, finished product workshop, and physical property testing room.
As professional China Mn-Cr Alloy Cast Jaw Crusher Wear Parts: Jaw Plates & Cheek Plates (Side Liners) Factory and Custom Mn-Cr Alloy Cast Jaw Crusher Wear Parts: Jaw Plates & Cheek Plates (Side Liners) Suppliers, the company is equipped with 2 fully automatic iron mold sand coating production lines, 4 mechanical arm shell molding machines, 1 fully automatic lost foam mold production line, 1 fully automatic heat treatment quenching + reheat treatment production line, 2 automatic flipping annealing furnaces, 3 sets of VIP-1800 series melting furnaces, cabinet-type PRO spectrometer, carbon-sulfur analyzer, hardness tester, far-infrared temperature measuring instrument, etc. The production and testing equipment is complete and comprehensive. Temperature-controlled melting, constant-temperature pouring, automatic temperature-controlled quenching, and annealing have been achieved, and many technologies are at the forefront of the industry.
The product specifications are complete, meeting the needs of customers for different materials of cast balls, cast sections, ball mill liners, crusher guards, hammers, etc., ranging from Ф8mm to Ф150mm. The company now has an annual production capacity of 60,000 tons of cast balls and castings.
In its development, the enterprise has always adhered to the development strategy of "using science and technology to build the enterprise" and "strengthening innovation to build the enterprise". It has continuously strengthened service awareness and quality awareness, and has successively obtained ISO9001 quality certification, ISO14001 environmental certification, ISO45001 occupational health and safety management certification; and has received many certificates such as "Safety Production Standardization".
We adhere to the business philosophy of "trustworthiness as the foundation, integrity as the priority", requiring every employee to be honest in their conduct and diligent in their work, and to be responsible for producing high-quality and qualified products to increase production and efficiency for customers. We strive to become a century-old enterprise with high quality, strong quality, good reputation, and a beautiful environment.

0

EMPLOYEE
0 Tons

ANNUAL OUTPUT
0 +m²

FACTORY AREA

Certificate Of Honor

News

How Are Steel Casting Parts Made, and How Do They Differ From Cast Iron
2026-10-14
Steel Casting Parts: A Practical Guide to Materials, Methods and Quality Control Steel Casting Parts sit inside crushers, mining machines, valves, pumps, rail equipment and construction machinery, w...
READ MORE
What Are Crusher Wear Parts and How Do You Choose the Right Ones for Your Crusher
2026-10-14
Crusher Wear Casting Parts: How crusher wear parts Are Specified, Cast and Kept Running in Cone, Jaw and Impact Crushers Every tonne of rock that passes through a crusher takes a little of the machi...
READ MORE
Casting Ball Mill Liner: What Are the Different Types of Liners Used in Ball Mills
2026-10-14
Mill Liner Engineering Reference Casting Ball Mill Liner: Geometry, Metallurgy and Wear Life in High-Tonnage Grinding Circuits A grinding circuit is only as stable as the wear parts inside its shell...
READ MORE
Technological iteration empowers the crushing industry. The Casting Chromium Hammer has been launched with great significance, addressing the pain points in the wear-resistant parts industry.
2026-08-10
Recently, the Casing Chromium Hammer, a new generation of core components for wear-resistant crushing, from Anhui Ningguo Zhongrui Wear-resistant Materials Co., Ltd., has been launched. Relying on cor...
READ MORE
Enhanced protection and durability with dual upgrades, the Casting Ball Mill Liner is a significant new addition. This product, developed by Casing Ball Mill Liner, significantly strengthens the safety barrier of the powder grinding system.
2026-08-03
Recently, the Zhongrui Wear-resistant Materials Co., Ltd. in Ningguo City, Anhui Province, completed a comprehensive technical upgrade for the Casting Ball Mill Liner series. Leveraging multi-gradient...
READ MORE
The high-quality grinding balls are meticulously crafted to form a durable core. The Grinding Ball has been comprehensively upgraded, empowering the entire powder grinding industry chain.
2026-07-08
Recently, Zhongrui Wear-resistant Materials Co., Ltd. in Ningguo City, Anhui Province, completed the technological iteration and upgrade of the Grinding Ball product. Relying on a mature high-chromium...
READ MORE

#1 Alloy Chemical Composition:
ITEM	C	Si	Mn	P	S	Cr	Mo	Ni	Cu
Mn13Cr2	1.05-1.35	0.3-0.9	11-14	≤0.06	≤0.04	1.5-2.5	--	--	--
Mn13Cr2Mo	1.05-1.35	0.3-0.9	11-14	≤0.06	≤0.04	0.4-1.2	0.4-1.2	--	--
Mn18Cr2	1.05-1.35	0.3-0.9	16-19	≤0.06	≤0.04	1.5-2.5	--	--	--
Mn22Cr2	1.05-1.35	0.3-0.9	20-22	≤0.06	≤0.04	1.5-2.5	--	--	--
Cr26Ni5	≤0.20	≤0.20	≤0.20	≤0.06	≤0.04	24-28	≤0.50	4-6	--
Cr26Ni12	0.2-0.5	≤0.20	≤0.20	≤0.06	≤0.04	24-28	≤0.50	11-14	--
Cr25Ni20Mo	0.35-0.45	≤0.20	≤0.20	≤0.06	≤0.04	23-27	1.1-1.4	19-22	--
Cr15Mo2	2-2.8	≤0.10	0.5-1.0	≤0.10	≤0.06	13-18	1.5-2.5	0-1.0	0-1.2
Cr20Mo2Cu	2-3.0	≤0.10	0.5-1.0	≤0.10	≤0.06	18-22	1.5-2.5	0-1.0	0.8-1.2
Cr26Mn	2-3.0	≤0.10	0.5-1.0	≤0.10	≤0.06	23-28	0-1.5	0-2.0	0.8-1.2
Remark: We can make any other type of alloy materials for customization.

#2 Product Physical Technical:
ITEM	Yield strength Yp0.2 / MPa	Tensile Strength Rm / MPa	Impact absorption KU2 /J	Hardness HBW	Microstructure
Mn13Cr2	≥ 390	≥ 735	≥ 96	≤ 300	A + C
Mn13Cr2Mo	≥ 390	≥ 735	≥ 96	≤ 300	A + C
Mn13Cr2Ni3	≥ 370	≥ 705	≥ 118	≤ 300	A + C
Mn18Cr2	≥ 390	≥ 735	≥ 96	≤ 300	A + C
Cr26Ni5		ɑ ɓ(MPa) 590			A + F
Cr26Ni12		ɑ ɓ(MPa) 490			A + F
Cr25Ni20Mo		ɑ ɓ(MPa) 490			A + F
Cr15Mo2				HRC ≥ 53	M+ A + C
Cr20Mo2Cu				HRC ≥ 58	M+ A + C
Cr26Mn				HRC ≥ 55	M+ A + C
M= Martensite ; C= Carbide ; A= Austenitic ; F= Ferritic ;
Remark: we can make any other special mechanical properties for customization
