High Manganese Alloy Cast Ball Mill Liner Plate for Φ1.8×3.6m Ball Mill

Product Introduction

Product Overview

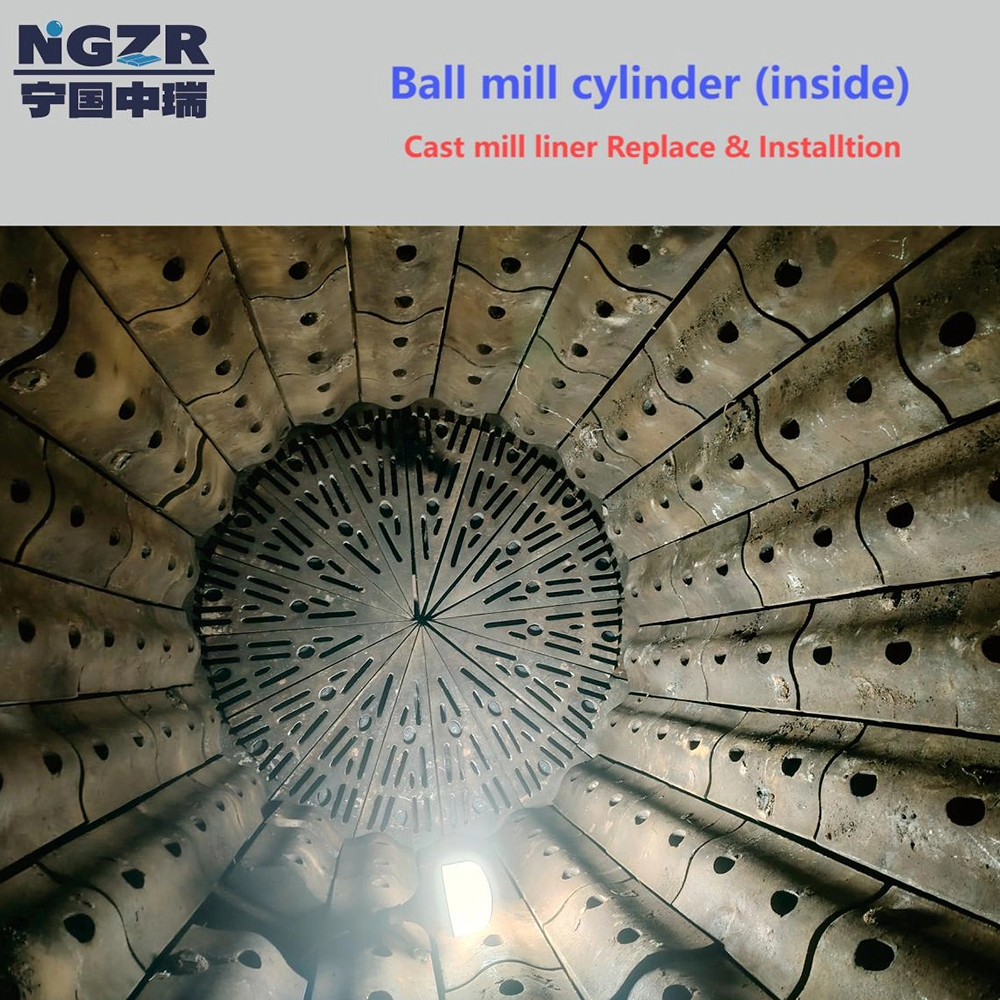

Ball mill liner plates are fitted in grinding ball mills so that the mill cylinder is not abraded or broken by the grinding process. For mill machinery in Mining / Cement and other industries, mill liners are very important wear parts. Alloy steel /Ceramics / Rubbers, composite materials and so on are used to make these protective mill linings.

Specifications:

Liner Name

   Ball Mill Size: Φ1800 x 3600 mm

  Pieces per set

 Weight (kg)

1.

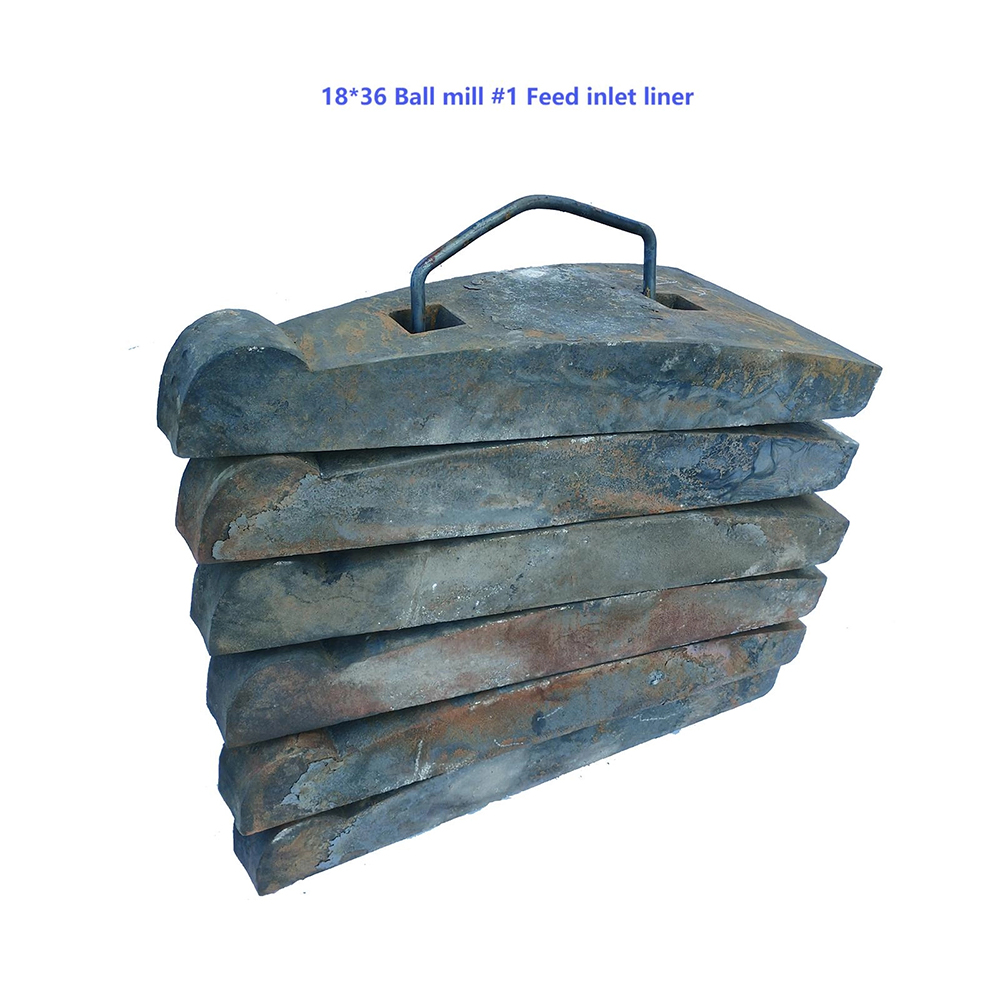

Feed end liner

16

2.

Discharge end liner

8

3.

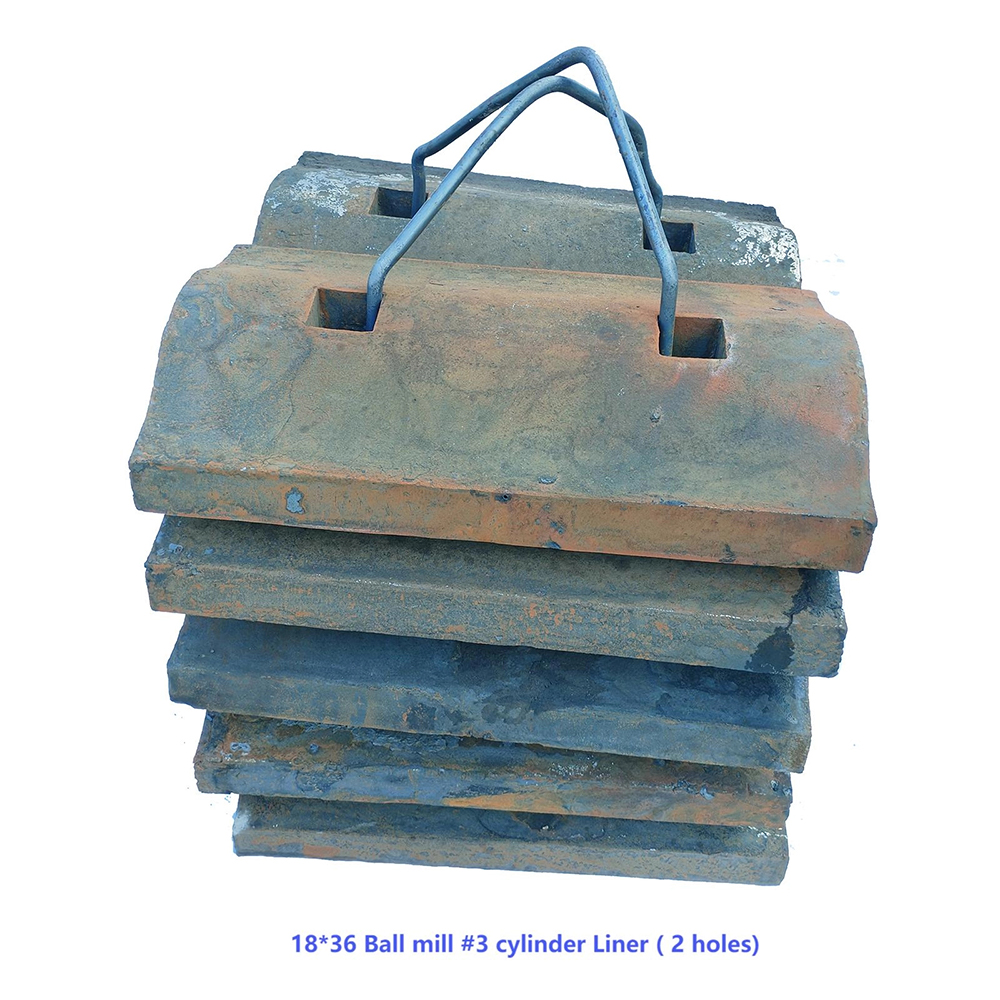

Mill shell liner (two holes)

72

4.

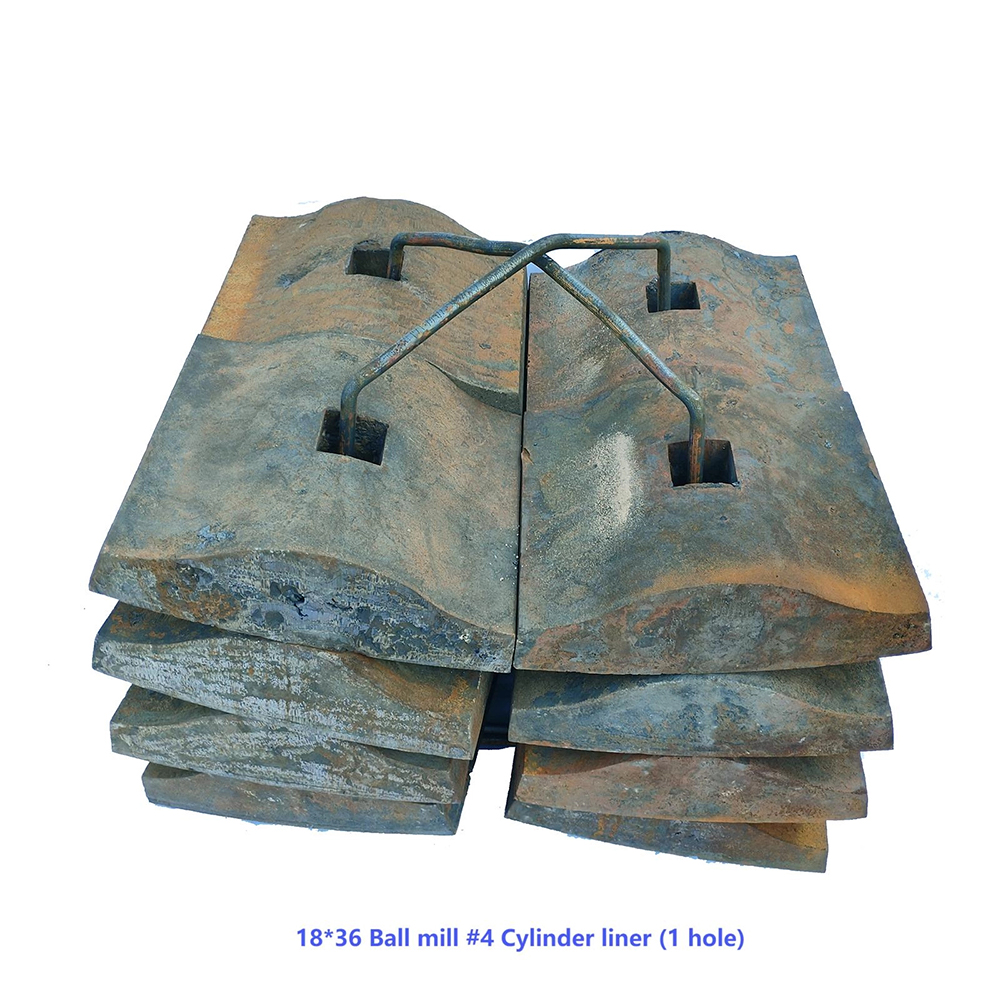

Mill shell liner (one hole)

16

5.

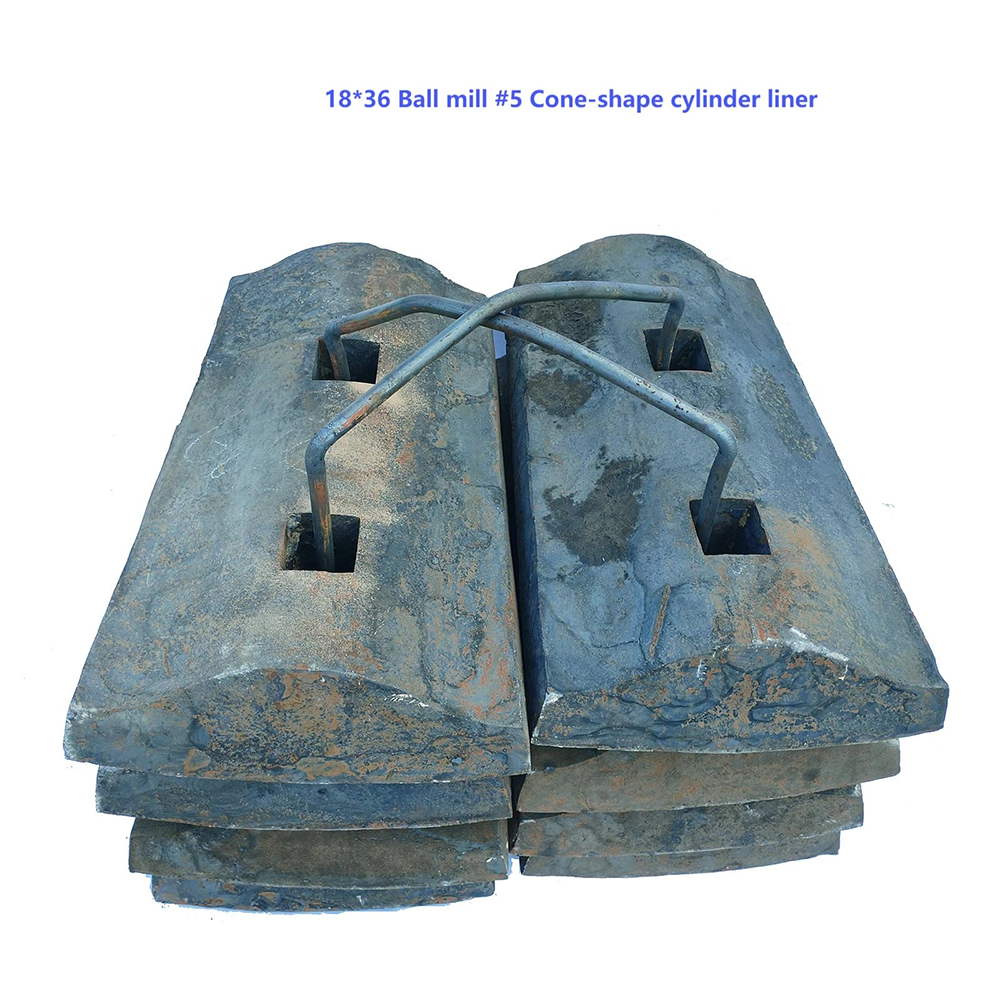

Conical shell liner

16

    TOTAL

128

13400 kgs

Alloy Material: Mn13Cr2 Quality Standard: GB/T 5611-2023

Reference Price: USD 17,000 per set, FOB Shanghai port / China.

  • Core Features
  • Application Scenarios
  • Product Characteristics
  • Customization Options

Key Advantages

Fairly consistent quality
High Manganese alloy (M13Cr2 - M18Cr2) cast mill liners have the lowest cost and a longer record of use than other alloy steels, Ceramics and Rubbers. NGZR has over 10 years of experience in R&D, manufacturing and after-sales service for High Mn-Cr cast mill liners serving the mining and cement industries.
For every mill with a diameter under 6 meters, we guarantee product quality and operating life to all customers.

Reduced operating cost
High Mn-Cr alloy cast mill lining plates last long and keep a stable quality. NGZR has a large production capacity, an advanced lost foam process and a fully automatic precision casting line. This lets us offer all customers more competitively priced products, so their unit production cost drops below its earlier level.

Tailored alloy steel composition
 To meet client requirements, the NGZR foundry can adjust the alloy steel composition (Mn: 11-23%) or add other special metallic elements (Mo /Cu /Ni/Cr, etc.). Combined with special heat treatment, this gives the cast liner particular mechanical properties that suit each customer's different working conditions.

Custom drawings, sizes and shapes
The NGZR foundry can produce customized mill liners from the customer's drawings of existing ones. We can also modify the shape, thickness and wear quality of existing mill liner plates, so customers spend less on liners and gain higher production efficiency.

On-site measurement & installation guidance
Should a customer be unable to supply drawings of the existing mill liner, NGZR will send a service engineer to take measurements and handle the design as a one-stop service, free of charge.
On request, NGZR will provide door-to-door installation guidance for a fee.

Anhui Ningguo Zhongrui Wear-Resistant Materials Co., Ltd.

About Us

Anhui Province's Ningguo City Zhongrui Wear-resistant Materials Co., Ltd. is located in Ningguo City, which is known as the capital of wear-resistant castings in China. The company mainly produces high-chromium, medium-chromium, and low-chromium alloy cast balls, cast sections; ball mill liners; crusher guards, hammers, etc. It also has a casting ball workshop, casting workshop, white mold cutting workshop, heat treatment workshop, raw material workshop, finished product workshop, and physical property testing room.
As professional China High Manganese Alloy Cast Ball Mill Liner Plate for Φ1.8×3.6m Ball Mill Factory and Custom High Manganese Alloy Cast Ball Mill Liner Plate for Φ1.8×3.6m Ball Mill Suppliers, the company is equipped with 2 fully automatic iron mold sand coating production lines, 4 mechanical arm shell molding machines, 1 fully automatic lost foam mold production line, 1 fully automatic heat treatment quenching + reheat treatment production line, 2 automatic flipping annealing furnaces, 3 sets of VIP-1800 series melting furnaces, cabinet-type PRO spectrometer, carbon-sulfur analyzer, hardness tester, far-infrared temperature measuring instrument, etc. The production and testing equipment is complete and comprehensive. Temperature-controlled melting, constant-temperature pouring, automatic temperature-controlled quenching, and annealing have been achieved, and many technologies are at the forefront of the industry.
The product specifications are complete, meeting the needs of customers for different materials of cast balls, cast sections, ball mill liners, crusher guards, hammers, etc., ranging from Ф8mm to Ф150mm. The company now has an annual production capacity of 60,000 tons of cast balls and castings.
In its development, the enterprise has always adhered to the development strategy of "using science and technology to build the enterprise" and "strengthening innovation to build the enterprise". It has continuously strengthened service awareness and quality awareness, and has successively obtained ISO9001 quality certification, ISO14001 environmental certification, ISO45001 occupational health and safety management certification; and has received many certificates such as "Safety Production Standardization".
We adhere to the business philosophy of "trustworthiness as the foundation, integrity as the priority", requiring every employee to be honest in their conduct and diligent in their work, and to be responsible for producing high-quality and qualified products to increase production and efficiency for customers. We strive to become a century-old enterprise with high quality, strong quality, good reputation, and a beautiful environment.
