High Abrasion-Resistant Alloy Steel Cast Excavator Bucket Teeth & Adapters for Mining

Product Introduction

Product Overview

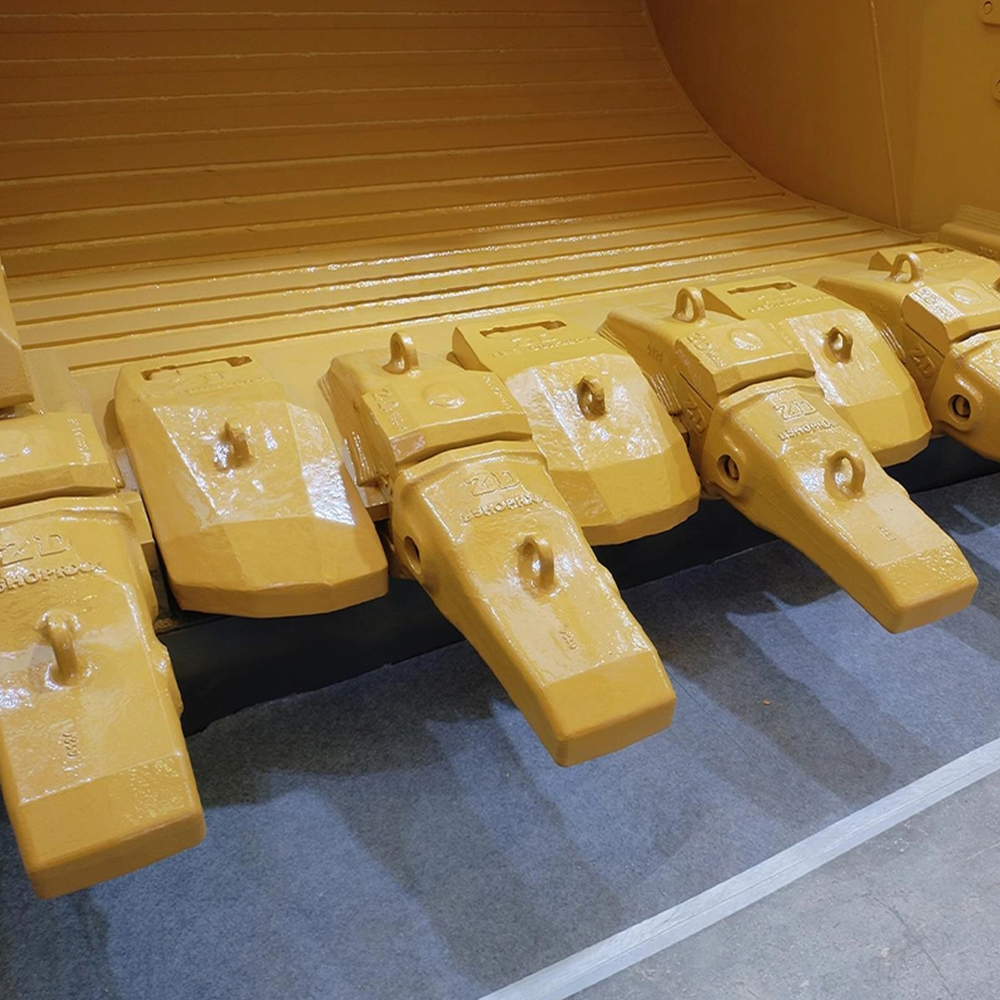

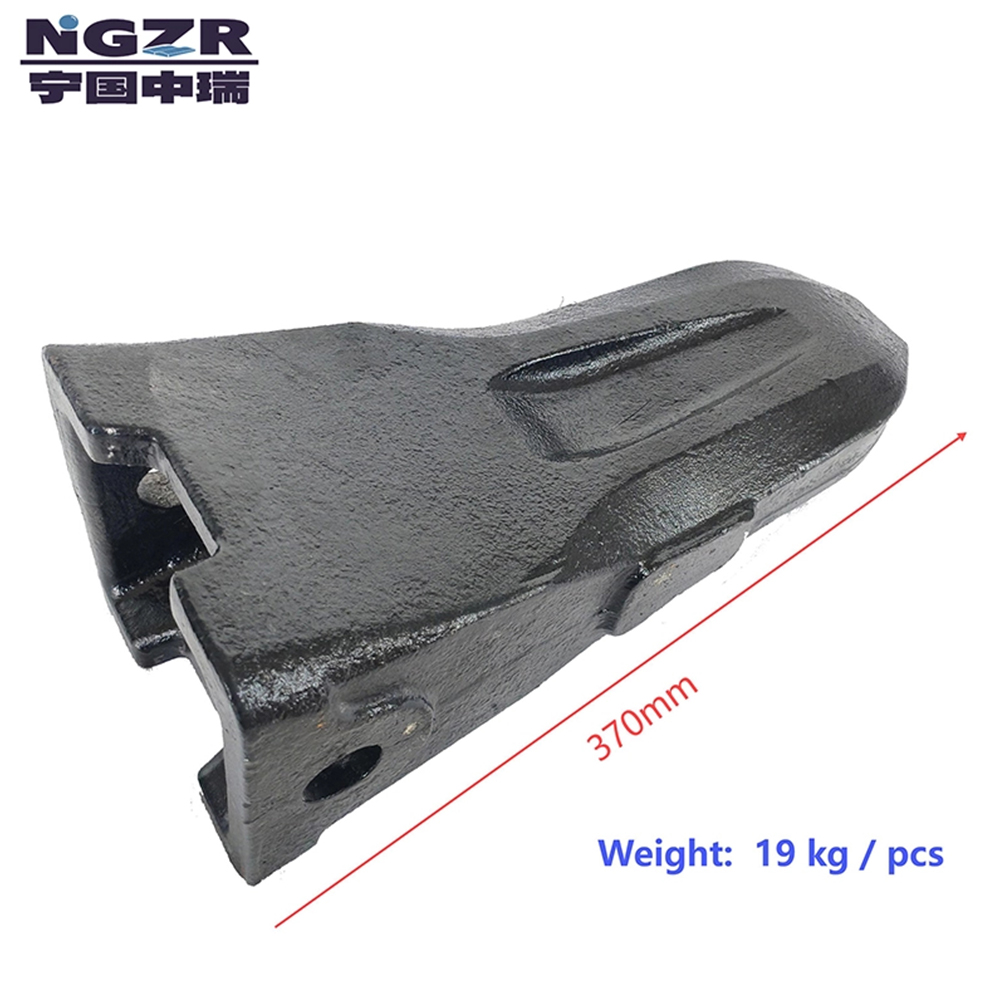

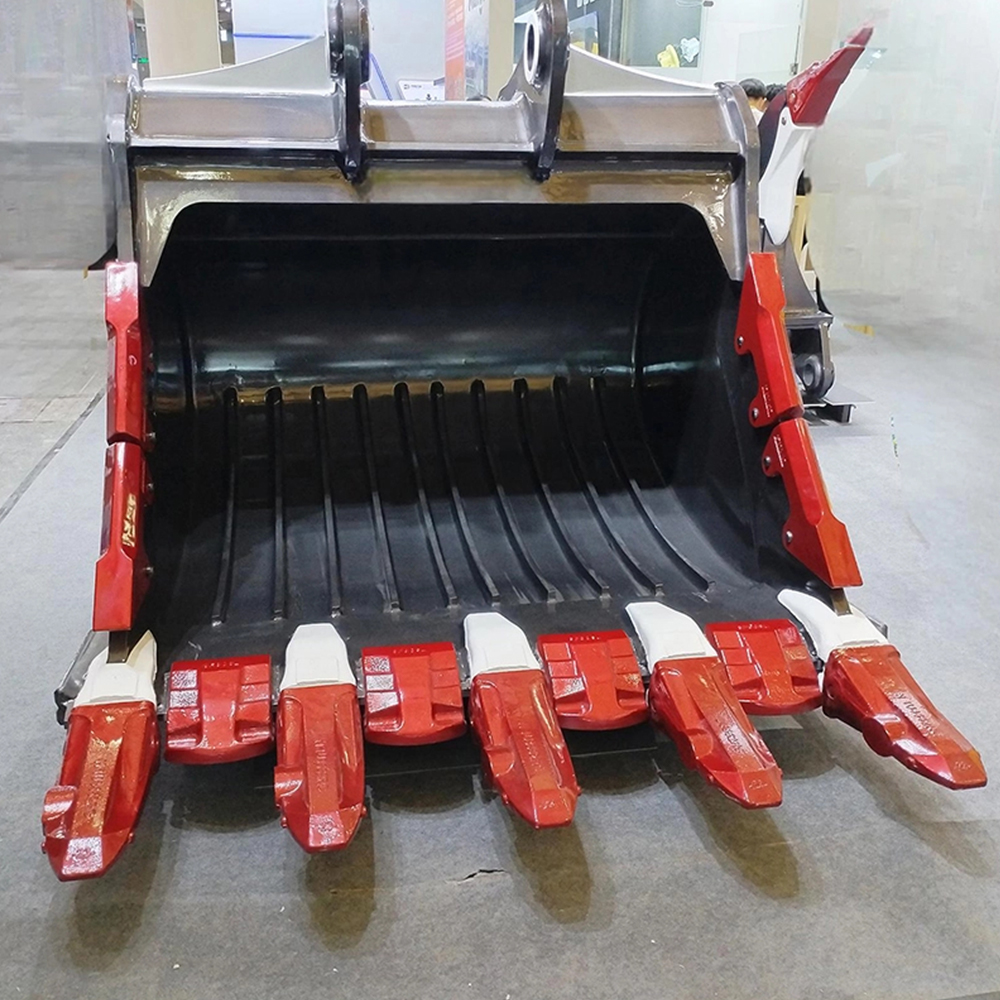

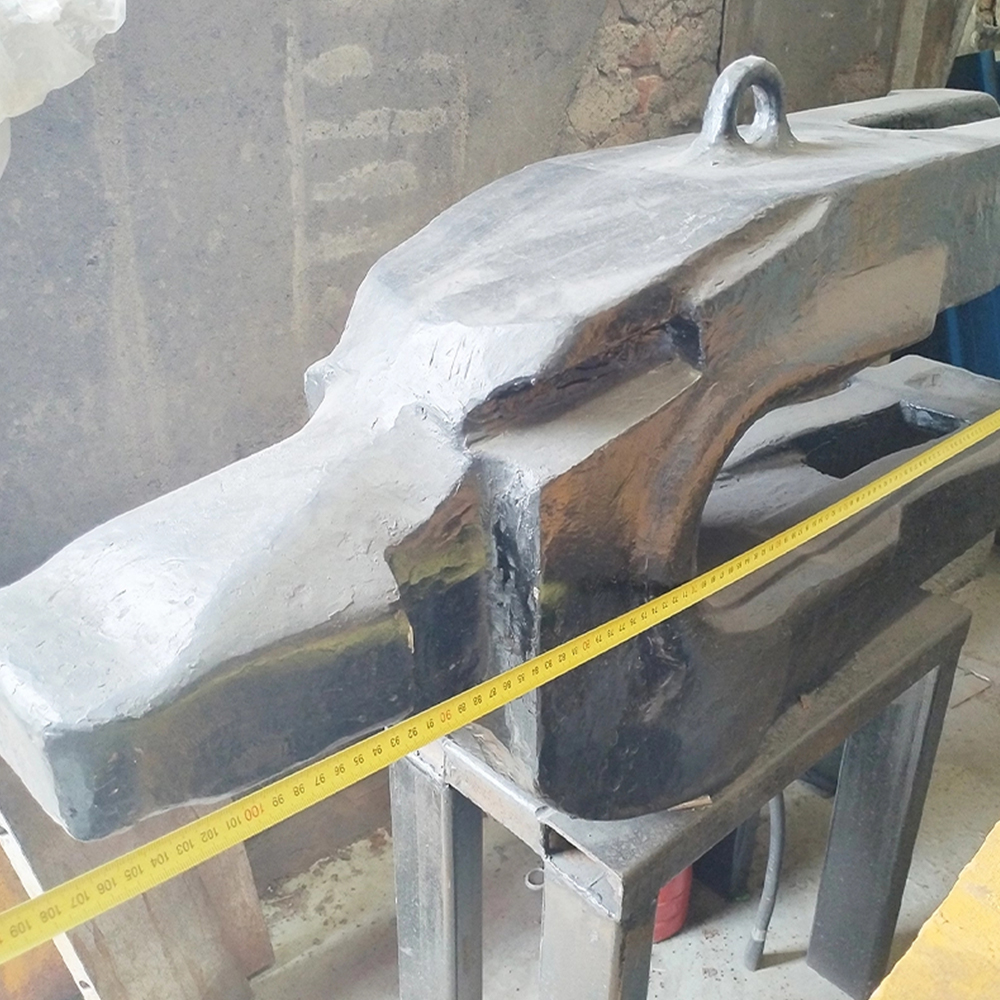

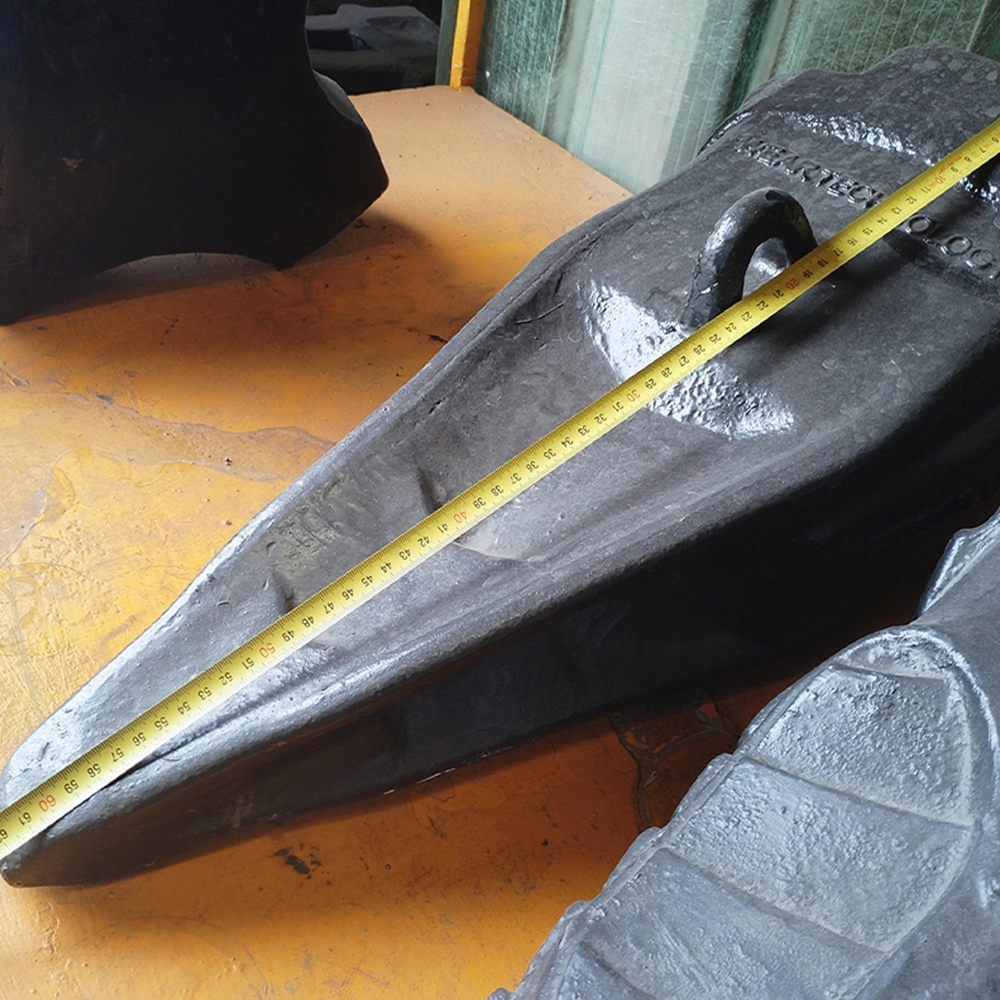

Bucket teeth are important excavator components, much like human teeth, and are also vulnerable parts. A tooth seat and a tooth tip joined by a pin shaft make up the assembly. Since bucket teeth wear out and fail, only the tooth tips have to be replaced.
Sand casting, forging and precision casting are the ways bucket teeth are made. Compared with precision casting and forging, sand casting costs the least but gives lower craftsmanship and tooth quality. Forging: higher cost, with better craftsmanship and tooth quality. Precision casting: moderate cost, but raw material requirements are very strict and the craftsmanship level is relatively high. Because of their ingredients, some precision cast bucket teeth have even surpassed forged bucket teeth in wear resistance and quality. Precision casting is the mainstream process for making bucket teeth on the market.
Bucket teeth are consumable spare parts of excavating machinery, and they break up minerals, rocks and other materials. They should last longer, so they need high hardness with a low wear rate and breakage rate. For that reason they are made from high manganese alloy steel or high chromium alloy steel, cast on an advanced automatic casting line and given a special heat treatment, which improves product quality and useful life!

PREV：High Abrasion Resistant Alloy Cast Blades Of Spiral Classifier Machinery For Mineral Processing Plant NEXT：No next article

Core Features
Application Scenarios
Product Characteristics
Customization Options

Key Advantages

Fairly consistent quality
Cast wear parts made of high manganese-chromium alloy steel have a longer record of service life than those made of other kinds of material.
NGZR has over 10 years of experience in R&D, manufacturing and after-sales service for high Mn & high Cr cast wear parts, such as high chrome cast grinding media, high Mn-Cr alloy cast mill liners and crusher wear parts, for the mining and aggregate industries.

Reduced operating cost
Cast wear parts of Mn-Cr alloy steel (bucket teeth, adapters and guard boards) combine a long service life with consistent quality.
NGZR combines a large production capacity with an advanced lost foam process, a fully automatic precision casting line and a manual resin-sand wooden mould casting production line. This lets us offer all customers more competitively priced products, so their purchase cost falls below its previous level.

Tailored alloy steel composition
To suit customer needs, the NGZR foundry can adjust the chemical composition of the alloy steel (Mn /Cr) or add other special metallic elements (Si /Mo /Cu /Ni, etc). Together with special heat treatment, this gives these cast excavator bucket wear parts particular mechanical properties that fit each customer's different working conditions.

Custom drawings, sizes and shapes
The NGZR foundry can customize excavator bucket wear parts according to the drawing dimensions of the customer's existing ones. We can also modify the shape, thickness and wear resistance of the existing parts, helping customers reduce wear parts cost and raise production efficiency.

On-site measurement & installation guidance
Should a customer be unable to supply drawings of the excavator bucket wear parts currently in use, NGZR will send a service engineer free of charge to measure and draw up the product dimensions.
On request, NGZR can offer a door-to-door installation guidance service, which is paid.

Anhui Ningguo Zhongrui Wear-Resistant Materials Co., Ltd.

About Us

Anhui Province's Ningguo City Zhongrui Wear-resistant Materials Co., Ltd. is located in Ningguo City, which is known as the capital of wear-resistant castings in China. The company mainly produces high-chromium, medium-chromium, and low-chromium alloy cast balls, cast sections; ball mill liners; crusher guards, hammers, etc. It also has a casting ball workshop, casting workshop, white mold cutting workshop, heat treatment workshop, raw material workshop, finished product workshop, and physical property testing room.
As professional China High Abrasion-Resistant Alloy Steel Cast Excavator Bucket Teeth & Adapters for Mining Factory and Custom Excavator Bucket Adapter Manufacturers, the company is equipped with 2 fully automatic iron mold sand coating production lines, 4 mechanical arm shell molding machines, 1 fully automatic lost foam mold production line, 1 fully automatic heat treatment quenching + reheat treatment production line, 2 automatic flipping annealing furnaces, 3 sets of VIP-1800 series melting furnaces, cabinet-type PRO spectrometer, carbon-sulfur analyzer, hardness tester, far-infrared temperature measuring instrument, etc. The production and testing equipment is complete and comprehensive. Temperature-controlled melting, constant-temperature pouring, automatic temperature-controlled quenching, and annealing have been achieved, and many technologies are at the forefront of the industry.
The product specifications are complete, meeting the needs of customers for different materials of cast balls, cast sections, ball mill liners, crusher guards, hammers, etc., ranging from Ф8mm to Ф150mm. The company now has an annual production capacity of 60,000 tons of cast balls and castings.
In its development, the enterprise has always adhered to the development strategy of "using science and technology to build the enterprise" and "strengthening innovation to build the enterprise". It has continuously strengthened service awareness and quality awareness, and has successively obtained ISO9001 quality certification, ISO14001 environmental certification, ISO45001 occupational health and safety management certification; and has received many certificates such as "Safety Production Standardization".
We adhere to the business philosophy of "trustworthiness as the foundation, integrity as the priority", requiring every employee to be honest in their conduct and diligent in their work, and to be responsible for producing high-quality and qualified products to increase production and efficiency for customers. We strive to become a century-old enterprise with high quality, strong quality, good reputation, and a beautiful environment.

0

EMPLOYEE
0 Tons

ANNUAL OUTPUT
0 +m²

FACTORY AREA

Certificate Of Honor

News

How Are Steel Casting Parts Made, and How Do They Differ From Cast Iron
2026-10-14
Steel Casting Parts: A Practical Guide to Materials, Methods and Quality Control Steel Casting Parts sit inside crushers, mining machines, valves, pumps, rail equipment and construction machinery, w...
READ MORE
What Are Crusher Wear Parts and How Do You Choose the Right Ones for Your Crusher
2026-10-14
Crusher Wear Casting Parts: How crusher wear parts Are Specified, Cast and Kept Running in Cone, Jaw and Impact Crushers Every tonne of rock that passes through a crusher takes a little of the machi...
READ MORE
Casting Ball Mill Liner: What Are the Different Types of Liners Used in Ball Mills
2026-10-14
Mill Liner Engineering Reference Casting Ball Mill Liner: Geometry, Metallurgy and Wear Life in High-Tonnage Grinding Circuits A grinding circuit is only as stable as the wear parts inside its shell...
READ MORE
Technological iteration empowers the crushing industry. The Casting Chromium Hammer has been launched with great significance, addressing the pain points in the wear-resistant parts industry.
2026-08-10
Recently, the Casing Chromium Hammer, a new generation of core components for wear-resistant crushing, from Anhui Ningguo Zhongrui Wear-resistant Materials Co., Ltd., has been launched. Relying on cor...
READ MORE
Enhanced protection and durability with dual upgrades, the Casting Ball Mill Liner is a significant new addition. This product, developed by Casing Ball Mill Liner, significantly strengthens the safety barrier of the powder grinding system.
2026-08-03
Recently, the Zhongrui Wear-resistant Materials Co., Ltd. in Ningguo City, Anhui Province, completed a comprehensive technical upgrade for the Casting Ball Mill Liner series. Leveraging multi-gradient...
READ MORE
The high-quality grinding balls are meticulously crafted to form a durable core. The Grinding Ball has been comprehensively upgraded, empowering the entire powder grinding industry chain.
2026-07-08
Recently, Zhongrui Wear-resistant Materials Co., Ltd. in Ningguo City, Anhui Province, completed the technological iteration and upgrade of the Grinding Ball product. Relying on a mature high-chromium...
READ MORE

No. 276, Waihuan South Road, Economic and Technological Development Zone, Ningguo City, Anhui Province, China
+86 13205638142
412352080@qq.com

Quick links: Product; About; Solutions; Resources; News; Contact

Product Categories: Crusher Wear Casting Parts; Casting Grinding Media; Casting Mill Liner; Casting Wear Parts for Mining Equipment; Steel Casting Parts

Mobile

X Facebook

Product News

#1 Alloy Chemical Composition:
ITEM	C	Si	Mn	P	S	Cr	Mo	Ni	Cu
Mn13Cr2	1.05-1.35	0.3-0.9	11-14	≤0.06	≤0.04	1.5-2.5	--	--	--
Mn13Cr2Mo	1.05-1.35	0.3-0.9	11-14	≤0.06	≤0.04	0.4-1.2	0.4-1.2	--	--
Mn18Cr2	1.05-1.35	0.3-0.9	16-19	≤0.06	≤0.04	1.5-2.5	--	--	--
Mn22Cr2	1.05-1.35	0.3-0.9	20-22	≤0.06	≤0.04	1.5-2.5	--	--	--
Cr26Ni5	≤0.20	≤0.20	≤0.20	≤0.06	≤0.04	24-28	≤0.50	4-6	--
Cr26Ni12	0.2-0.5	≤0.20	≤0.20	≤0.06	≤0.04	24-28	≤0.50	11-14	--
Cr25Ni20Mo	0.35-0.45	≤0.20	≤0.20	≤0.06	≤0.04	23-27	1.1-1.4	19-22	--
Cr15Mo2	2-2.8	≤0.10	0.5-1.0	≤0.10	≤0.06	13-18	1.5-2.5	0-1.0	0-1.2
Cr20Mo2Cu	2-3.0	≤0.10	0.5-1.0	≤0.10	≤0.06	18-22	1.5-2.5	0-1.0	0.8-1.2
Cr26Mn	2-3.0	≤0.10	0.5-1.0	≤0.10	≤0.06	23-28	0-1.5	0-2.0	0.8-1.2
Remark: We can make any other type of alloy materials for customization.

#2 Product Physical Technical:
ITEM	Yield strength Yp0.2 / MPa	Tensile Strength Rm / MPa	Impact absorption KU2 /J	Hardness HBW	Microstructure
Mn13Cr2	≥ 390	≥ 735	≥ 96	≤ 300	A + C
Mn13Cr2Mo	≥ 390	≥ 735	≥ 96	≤ 300	A + C
Mn13Cr2Ni3	≥ 370	≥ 705	≥ 118	≤ 300	A + C
Mn18Cr2	≥ 390	≥ 735	≥ 96	≤ 300	A + C
Cr26Ni5		ɑ ɓ(MPa) 590			A + F
Cr26Ni12		ɑ ɓ(MPa) 490			A + F
Cr25Ni20Mo		ɑ ɓ(MPa) 490			A + F
Cr15Mo2				HRC ≥ 53	M+ A + C
Cr20Mo2Cu				HRC ≥ 58	M+ A + C
Cr26Mn				HRC ≥ 55	M+ A + C
M= Martensite ; C= Carbide ; A= Austenitic ; F= Ferritic ;
Remark: we can make any other special mechanical properties for customization
