GM-4: CADI Cast Grinding Media Ball for SAG Mill

Product Introduction

Product Overview

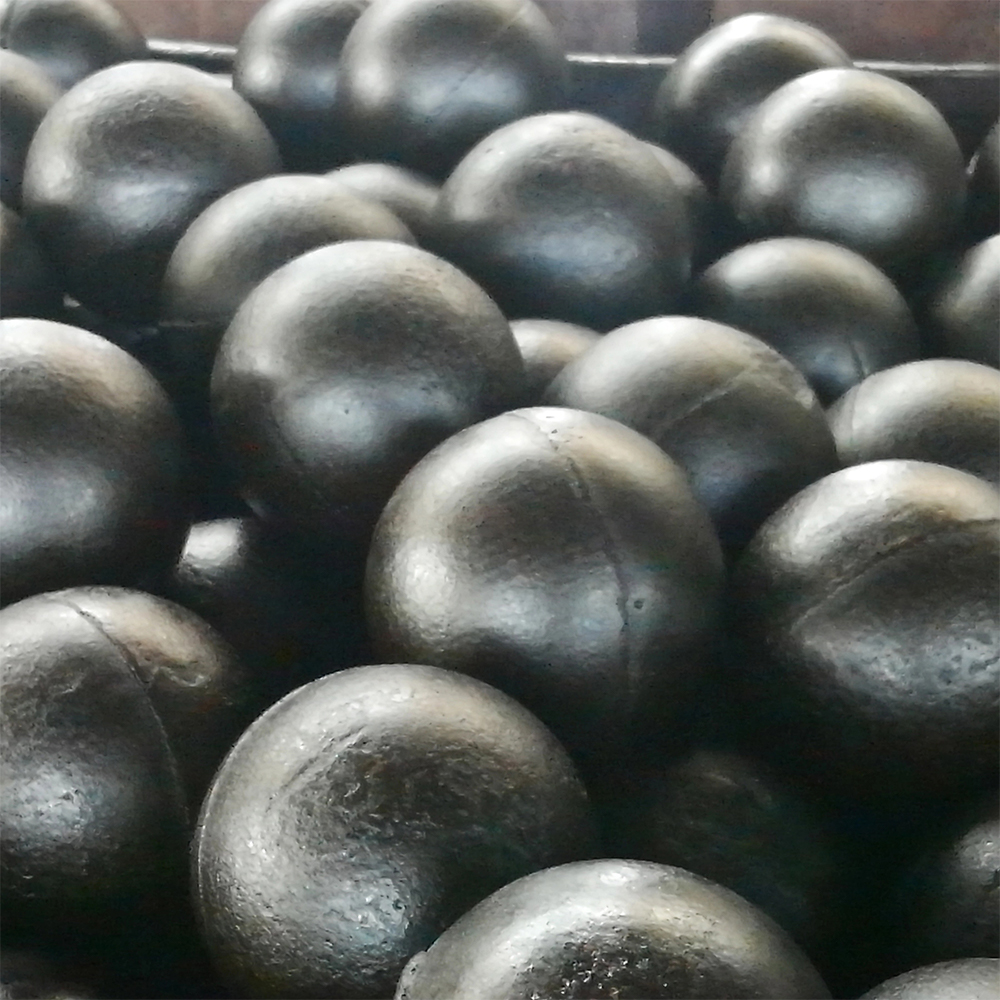

In a mining concentration plant, the CADI (Carbidic Austempered Ductile Iron) grinding ball is a carrier used in a ball mill / SAG mill to help crush & mill ore materials.
Cast as a Mn/Si/Cr alloy steel ball, the CADI grinding ball is made of ADI (Austempered Ductile Iron). The finished product has a hardness of HRC52-58, which rises to a surface hardness of HRC61-63 after use.
Impact toughness of this CADI grinding ball can exceed 10 J/m2, so it suits SAG & Ball mills whose diameter is more than 6 meters. Its breakage rate is probably the same as that of Forged steel balls, while it is consumed in smaller amounts than forged steel balls, probably about the same as high-chromium casting balls.

  • Core Features
  • Application Scenarios
  • Product Characteristics
  • Customization Options

Key Advantages

Lower breakage rate
This CADI cast grinding ball combines higher hardness with high impact toughness, so its grinding media consumption cost is lower than that of forged steel balls and lower chrome cast balls.

Lower breakage & out-of-roundness rates
Thanks to controlled raw material quality, advanced casting equipment and special heat treatment, NGZR CADI cast grinding balls have good physical properties. For large sizes (more than 100 mm), the breakage & out-of-roundness rate of CADI grinding balls is below 1%, while for small cast balls it is below 0.5%.

Anhui Ningguo Zhongrui Wear-Resistant Materials Co., Ltd.

About Us

Anhui Province's Ningguo City Zhongrui Wear-resistant Materials Co., Ltd. is located in Ningguo City, which is known as the capital of wear-resistant castings in China. The company mainly produces high-chromium, medium-chromium, and low-chromium alloy cast balls, cast sections; ball mill liners; crusher guards, hammers, etc. It also has a casting ball workshop, casting workshop, white mold cutting workshop, heat treatment workshop, raw material workshop, finished product workshop, and physical property testing room.

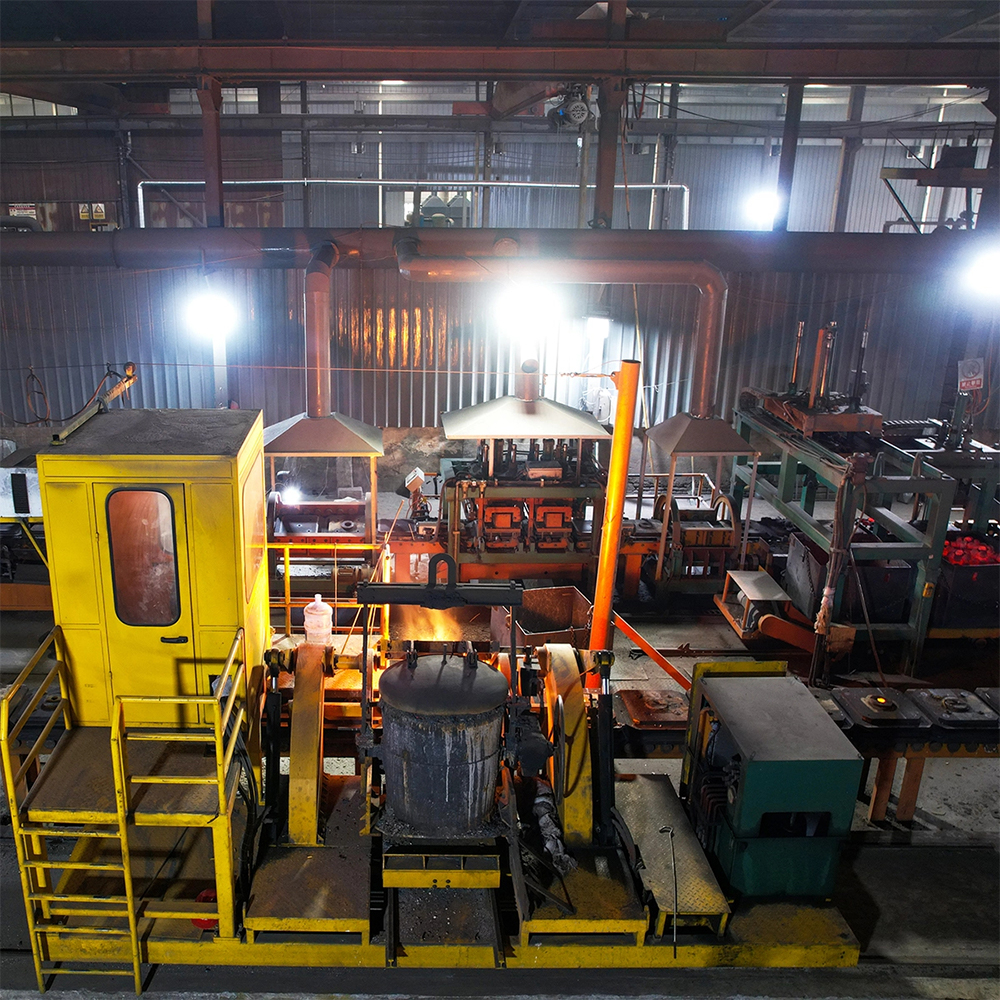

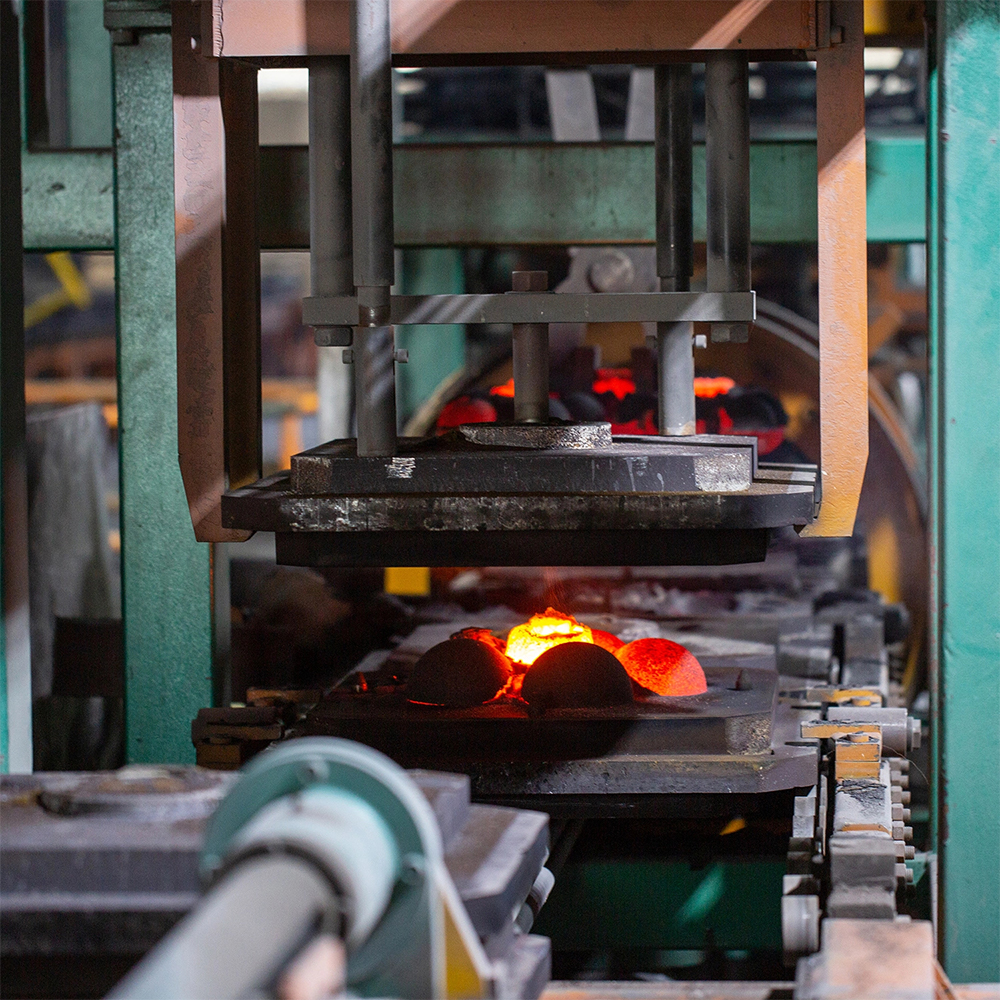

As professional China GM-4: CADI Cast Grinding Media Ball for SAG Mill Factory and Custom GM-4: CADI Cast Grinding Media Ball for SAG Mill Suppliers, the company is equipped with 2 fully automatic iron mold sand coating production lines, 4 mechanical arm shell molding machines, 1 fully automatic lost foam mold production line, 1 fully automatic heat treatment quenching + reheat treatment production line, 2 automatic flipping annealing furnaces, 3 sets of VIP-1800 series melting furnaces, cabinet-type PRO spectrometer, carbon-sulfur analyzer, hardness tester, far-infrared temperature measuring instrument, etc. The production and testing equipment is complete and comprehensive. Temperature-controlled melting, constant-temperature pouring, automatic temperature-controlled quenching, and annealing have been achieved, and many technologies are at the forefront of the industry.
The product specifications are complete, meeting the needs of customers for different materials of cast balls, cast sections, ball mill liners, crusher guards, hammers, etc., ranging from Ф8mm to Ф150mm. The company now has an annual production capacity of 60,000 tons of cast balls and castings.
In its development, the enterprise has always adhered to the development strategy of "using science and technology to build the enterprise" and "strengthening innovation to build the enterprise". It has continuously strengthened service awareness and quality awareness, and has successively obtained ISO9001 quality certification, ISO14001 environmental certification, ISO45001 occupational health and safety management certification; and has received many certificates such as "Safety Production Standardization".
We adhere to the business philosophy of "trustworthiness as the foundation, integrity as the priority", requiring every employee to be honest in their conduct and diligent in their work, and to be responsible for producing high-quality and qualified products to increase production and efficiency for customers. We strive to become a century-old enterprise with high quality, strong quality, good reputation, and a beautiful environment.
