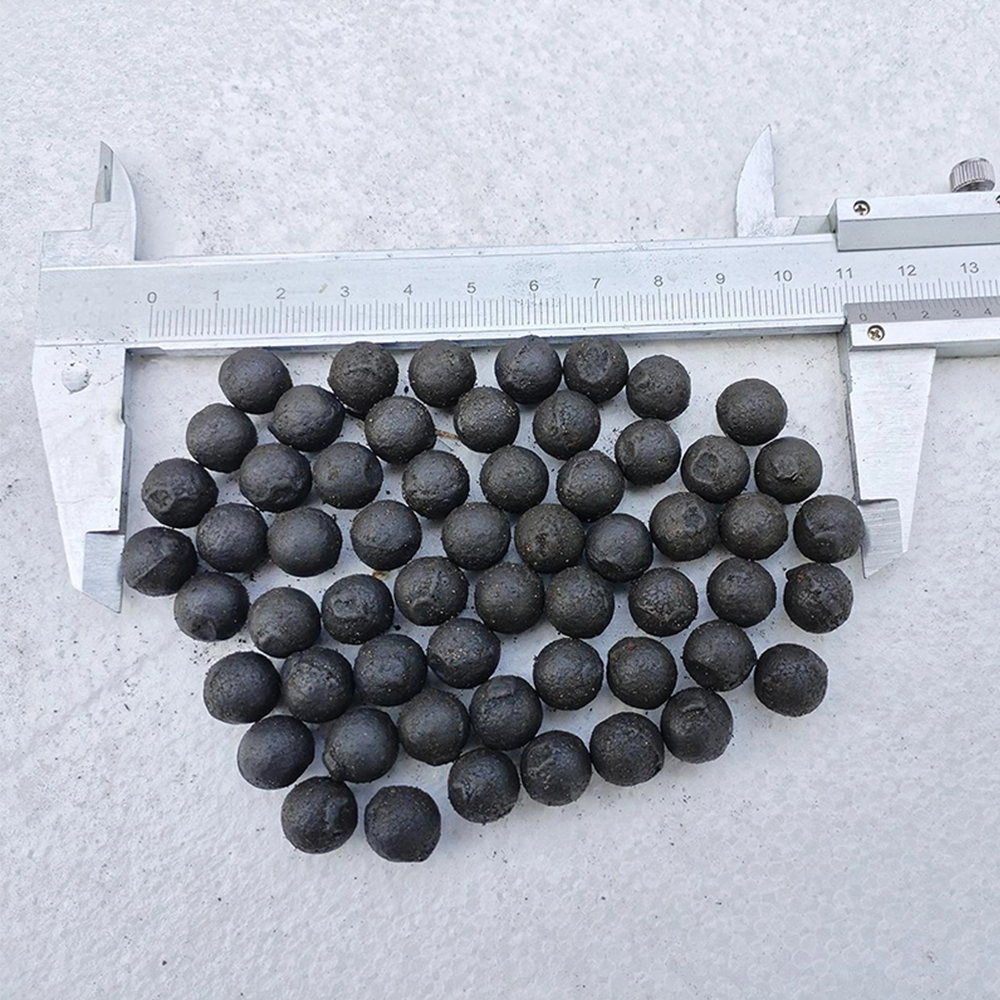

High Hardness & Wear-Resistant Φ30mm High Chromium Cast Grinding Ball for Tower Mill

Product Introduction

Product Introduction

As an efficient crushing equipment, the Tower mill has the following comprehensive advantages compared to ball mill/vertical mill and Raymond mill under specific working conditions: By relying on strong squeezing, grinding, and internal grading of mineral materials, Tower mills greatly reduce system power. In general usage scenarios, energy savings can reach over 50%, while in special usage scenarios, the energy savings are extremely high, greatly reducing production costs. By relying on internal grading, the Tower mill can easily process mineral sand into products with the required fineness, which can be adjusted between 74-1 μ m. By adjusting the feeding amount and particle size of a Tower grinder, its production capacity and product particle size can be controlled, greatly improving the adaptability of the equipment.

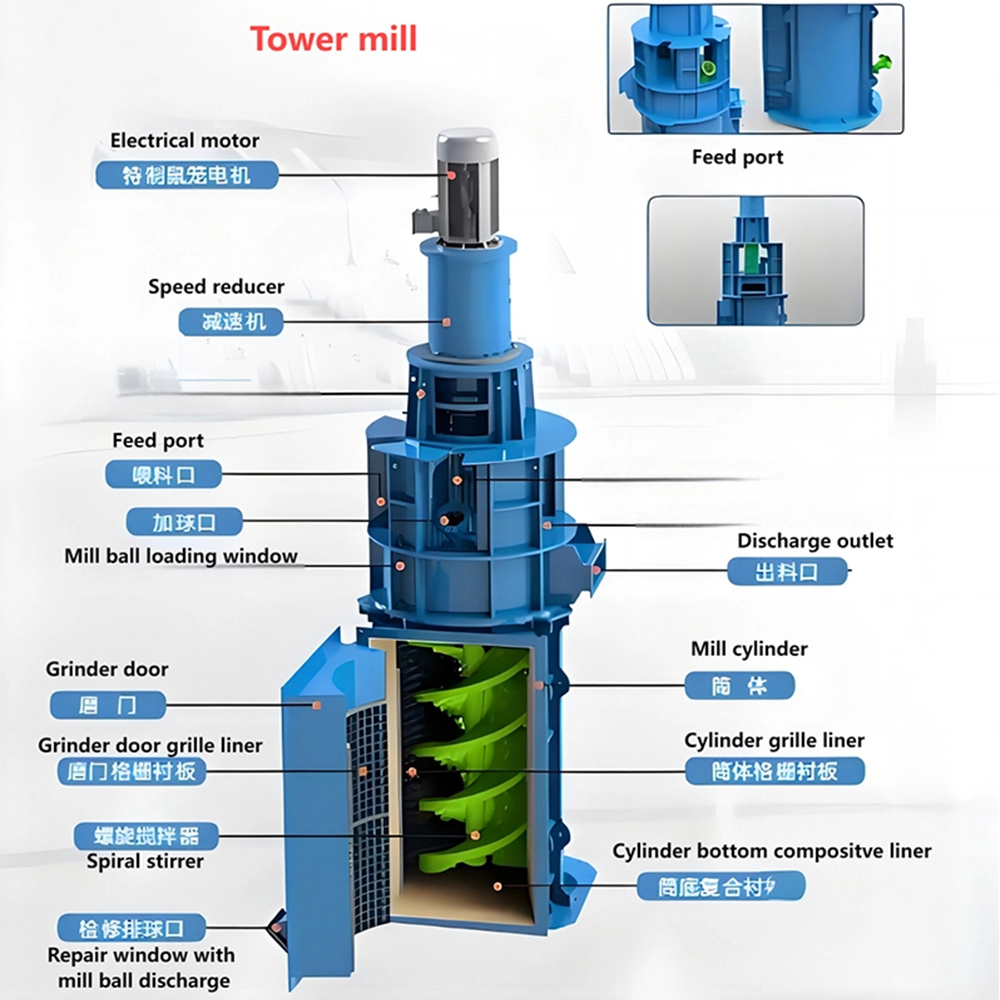

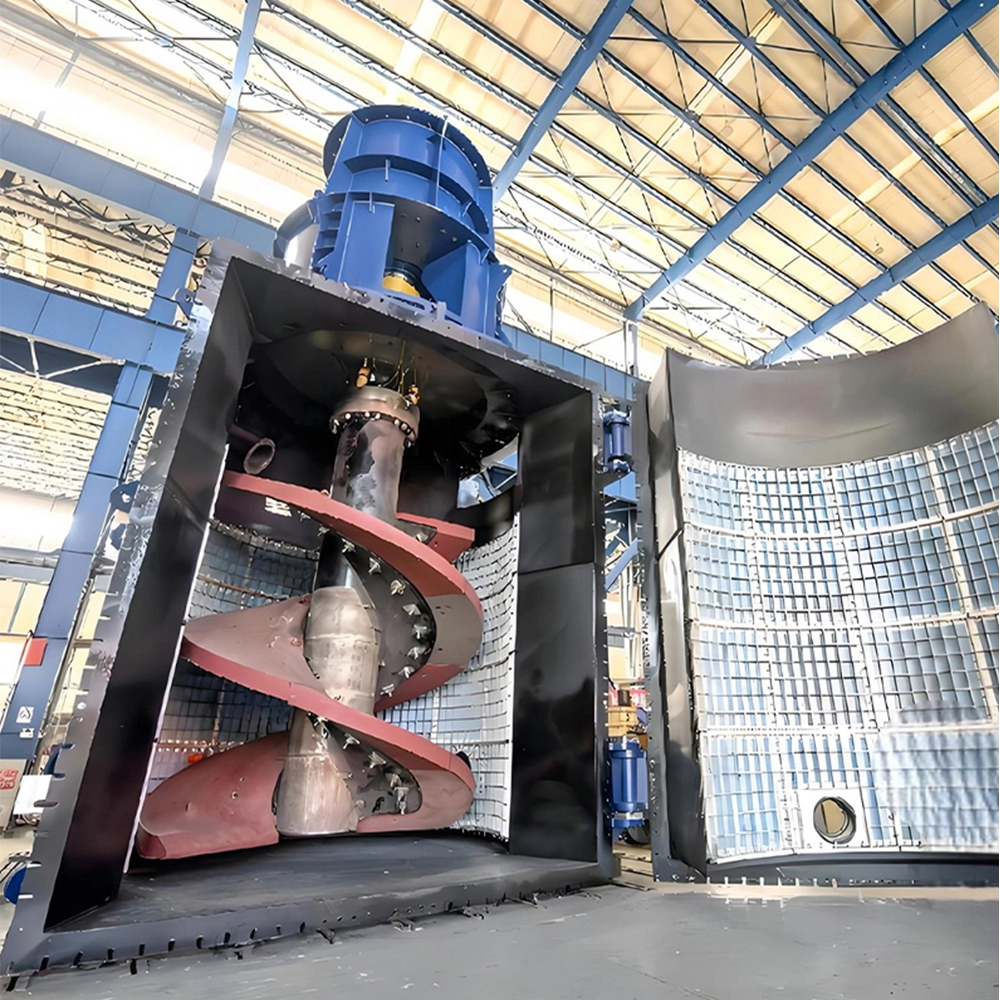

The tower mill operates at low speed and is an industrial equipment with high reliability and long service life. It has strong adaptability to the hardness and grindability of mineral materials, and has achieved large-scale production of micrometer-level products. The tower mill is mainly composed of a transmission system, tower body, spiral agitator, protective lining, etc. In the production process, a certain amount of grinding media is required, mainly using grinding steel balls.
High chromium grinding balls were cast with high chrome (10-28% Cr) alloy material. These grinding balls advantage as: high hardness ( HRC 58- 67 ), high wear resistance, low breakage rate, and high corrosion resistance.

PREV：GM-4: CADI Cast Grinding Media Ball for SAG Mill NEXT：High Abrasion-Resistant High Chrome Cast Grinding Steel Ball & Cylpebs for Cement Ball Mill

Core Features
Application Scenarios
Product Characteristics
Customization Options

Product Advantage

Lower consumption cost
Because high-chrome grinding balls have higher hardness and can be made with different contents of Chromium (10-28%), this kind of grinding media consumption will be only 25%-65% as forged steel & lower chrome casting balls, which are used to Ball mill & Tower mill. For some special minerals that have the highest hardness, such as Quartz sand, choose high-chrome ultra (Cr: 23-28%) casting steel balls; the grinding media consumption cost will be much lower than other kinds of grinding media.

Higher hardness
High Chromium casting balls with special heat treatment processing (Oil quench & annealing) will have higher hardness than forged grinding balls. 10% Cr- Chromium casting ball, ball diameter size Φ10 - Φ70 mm, grinding ball hardness can be HRC 66, much higher than forging ball and low-chrome steel ball. And the ball surface & core hardness difference is less than HRC 1.

Customized alloy Steel composition
NGZR foundry can follow the customer’s requirement to readjust the Chemical Composition of Chromium alloy content (1.0-28%) and other metallic element, with special heat-treatment processing, which can make this casting steel ball have different technical parameters, such as hardness / Impact Value / Breakage and de-shaping rate / micro- structure / high PH degree of acid or alkali resistant/high temperature resistance etc, to match customer’s diffent required.

Customized grinding media shape
NGZR can develop and make different shapes of grinding media, such as: Grinding ball (Sphere) / Grinding cylpebs ( Cylinder) / Grinding egg ( Ellipsoid) / Polyhedron Shape and other special customized shapes. Different shape grinding media will have better grinding effect with different grinding conditions.

Lower breakage & out-of-roundness rate

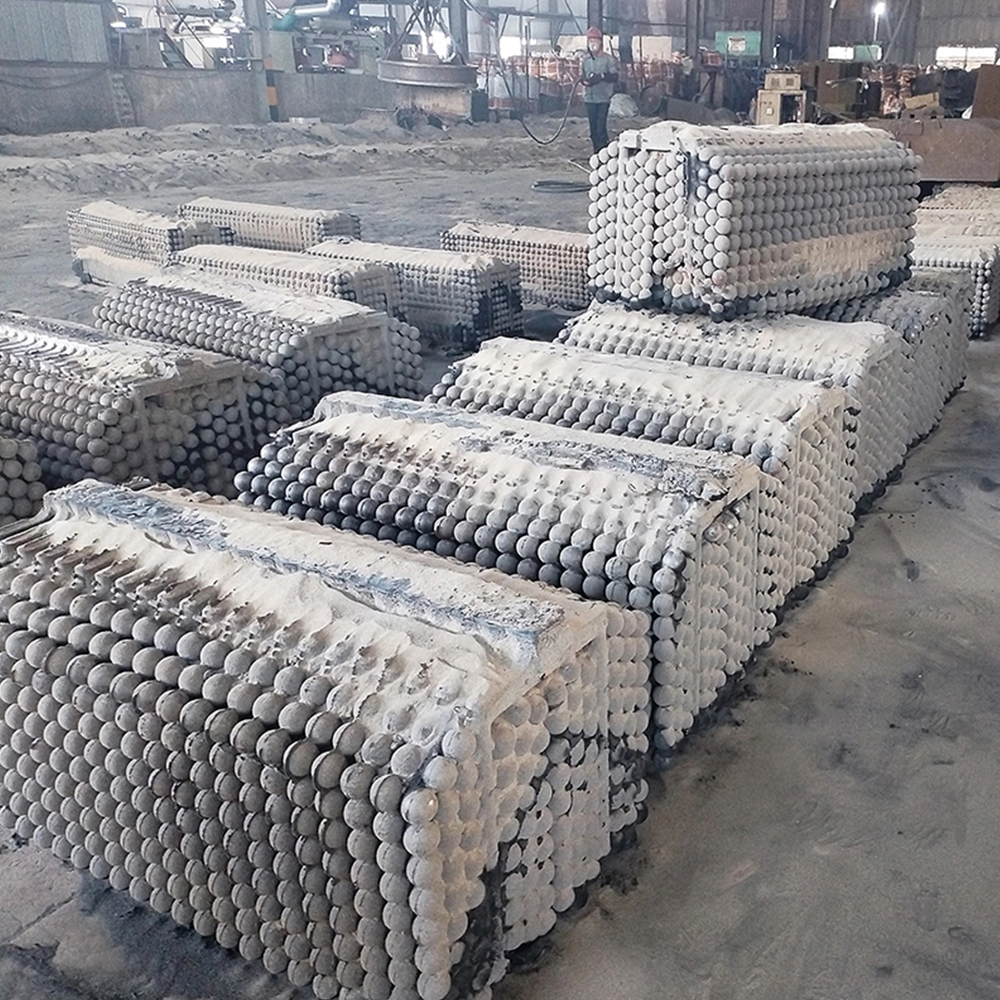

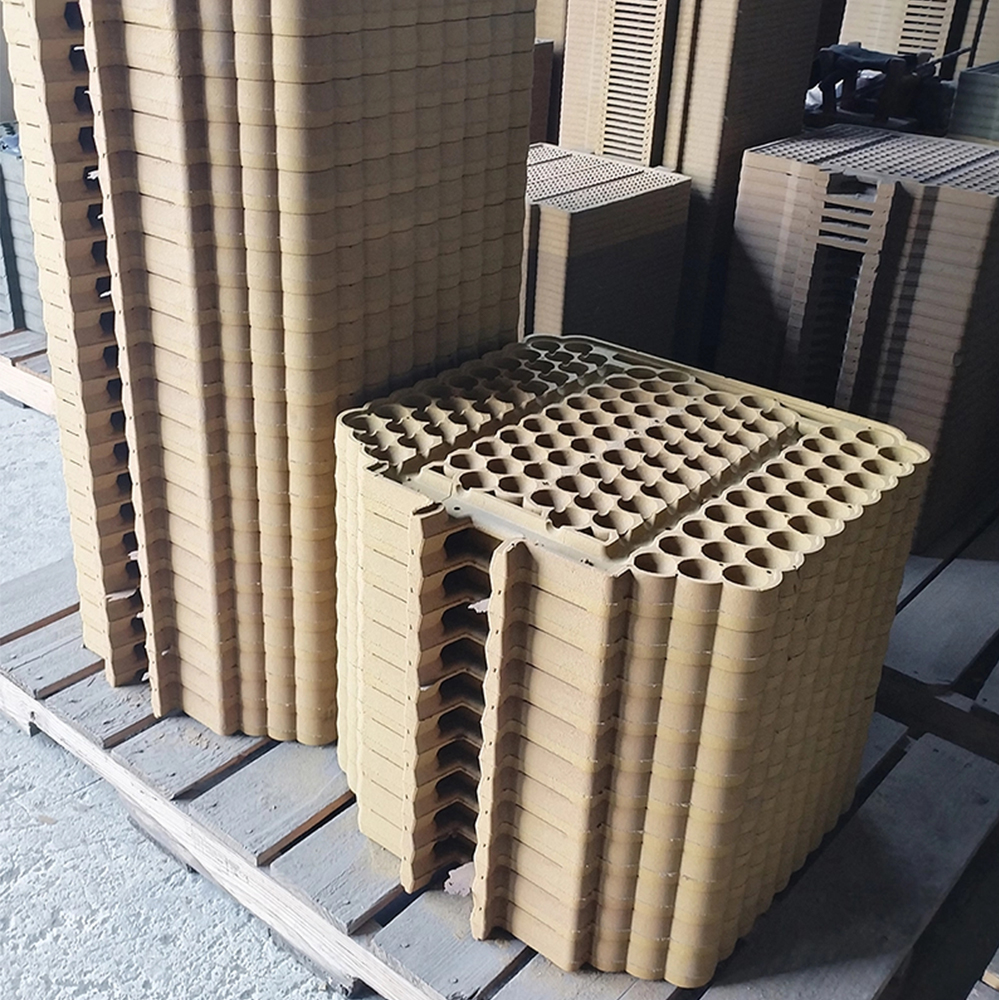

Depend oncontrolling raw material quality / advanced casting production equipment & special heat-treatment processing, the high chromium casting grinding ball product of NGZR has good Physical Property, large size casting ball breakage & Out-of-roundness rate will be less than 1%; small-size casting ball breakage & Out-of-roundness rate will be less than 0.5%.

Alloy Chemical Composition:
Cast grinding ball Name	Item	Chemical Composition ( % )
Cast grinding ball Name	Item	C	Si	Mn	Cr	Mo	Cu	Ni	P	S
High Chrome Ultra	ZQCr23	2.1-3.3	≤1.2	0.2-1.5	23 - 30	≤1.0	≤1.0	≤1.0	≤0.06	≤0.06
High Chrome Plus	ZQCr18	2.1-3.5	≤1.2	0.2-1.5	18 - 23	≤1.0	≤1.0	≤1.0	≤0.06	≤0.06
High Chrome	ZQCr10	2.1-3.6	≤1.2	0.2-1.5	10 - 15	≤1.0	≤1.0	≤1.0	≤0.06	≤0.06

Product Physical Technical:
Cast grinding ball Name	Item	Physical Technical
Cast grinding ball Name	Item	Surface Hardness	Breakage Rate	Impact fatigue Falling ball times	Impact Value ( J /cm2 )	Micro- structure
High Chrome Ultra	ZQCr23	HRC ≥ 62	≤ 1.0 %	≥ 15000	≥ 3.0	M +C
High Chrome Plus	ZQCr18	HRC ≥ 60	≤ 1.0 %	≥ 15000	≥ 3.0	M +C
High Chrome	ZQCr10	HRC ≥ 58	≤ 1.0 %	≥ 15000	≥ 3.0	M +C
Remark: M= Martensite ; C= Carbide ; P= Pearlite ; AF= Acicular Ferrite ; GJS= spheroidal graphite

Existing Product Size & Tolerance:

Product Size

Φ（mm）

Φ6 / Φ8 /Φ10 Φ12.5/ Φ15/

Φ17.5 /Φ20 / Φ25/ Φ30

Φ40 / Φ50

/Φ60

Φ70 /

Φ80

Φ90 /

Φ100

Φ110 /

Φ120

Φ125/Φ130/

Φ140 /Φ150

Diameter Tolerance

+ 1.0 mm

- 1.0 mm

+ 1.5 mm

- 1.0 mm

+ 2.0 mm

- 1.0 mm

+ 2.5 mm

- 1.0 mm

+ 3.0 mm

- 1.0 mm

+ 3.5 mm

- 2.0 mm

Remark: NGZR can customize any ball size from Φ6 to Φ150 mm by casting ;

Product Weight:
Size (mm)	Φ20	Φ25	Φ30	Φ40	Φ50	Φ60	Φ70	Φ80
Weight (kg /pcs)	0.034	0.063	0.11	0.26	0.51	0.86	1.37	2.05
Q’ty (pcs) per mt	31506	15873	9091	3891	2000	1153	729	487
Size (mm)	Φ90	Φ100	Φ110	Φ120	Φ125	Φ130	Φ160
Weight (kg/pcs)	2.9	4.0	5.3	6.8	7.75	8.74	13.5
Q’ty (pcs) per mt	345	250	188	147	129	114	74
