High Abrasion-Resistant High Chrome Cast Grinding Steel Ball & Cylpebs for Cement Ball Mill

Product Introduction

Product Introduction

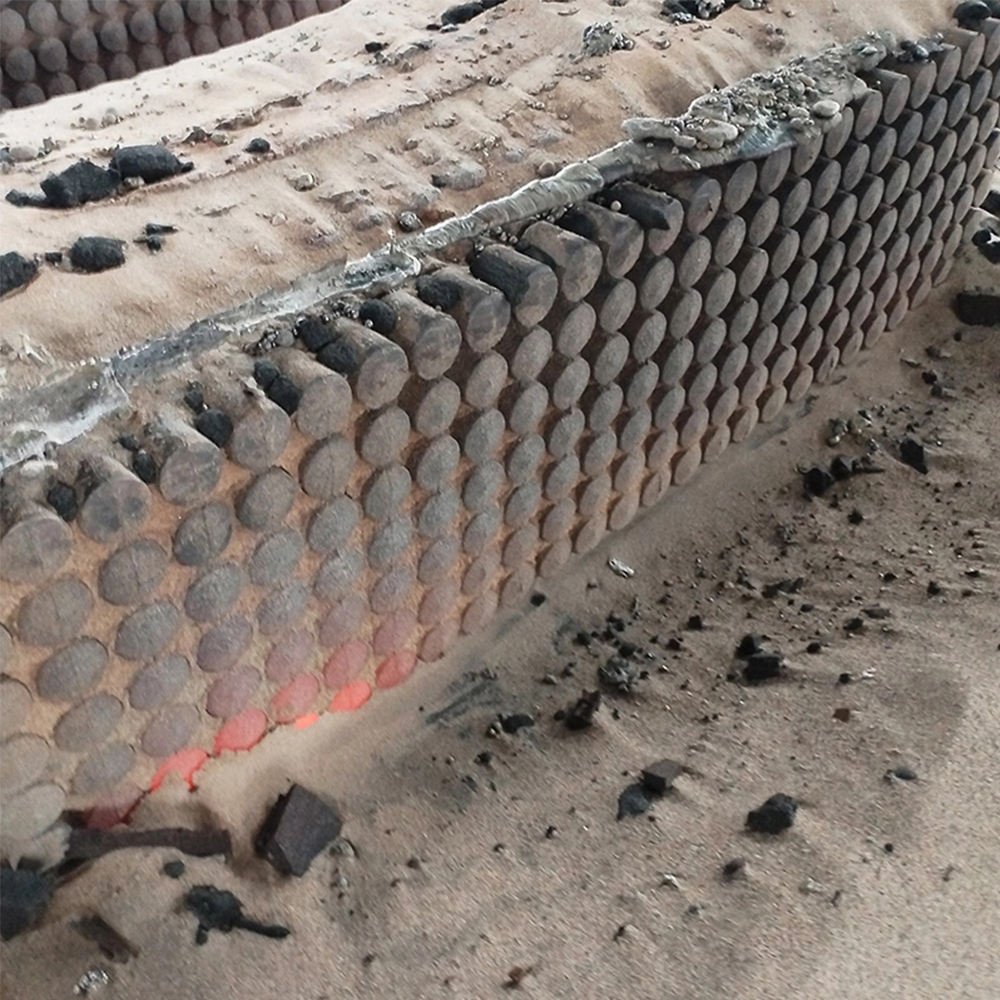

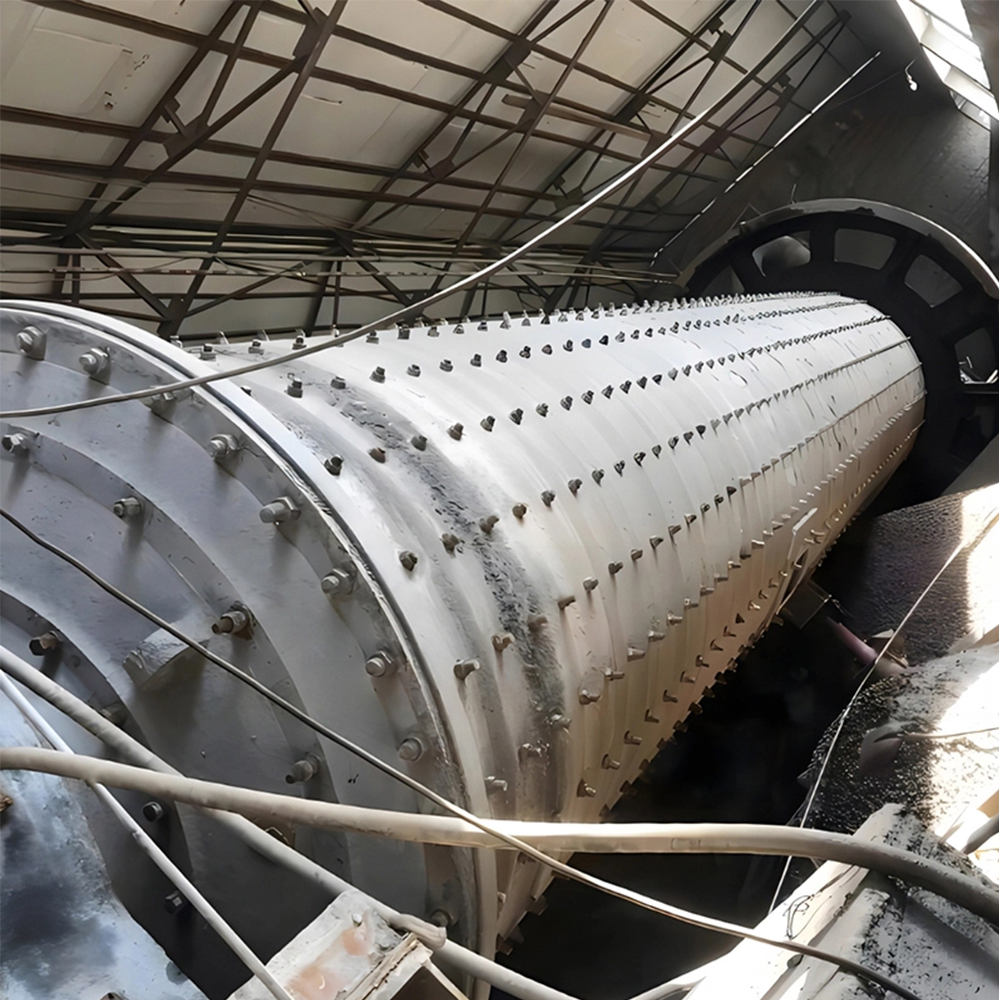

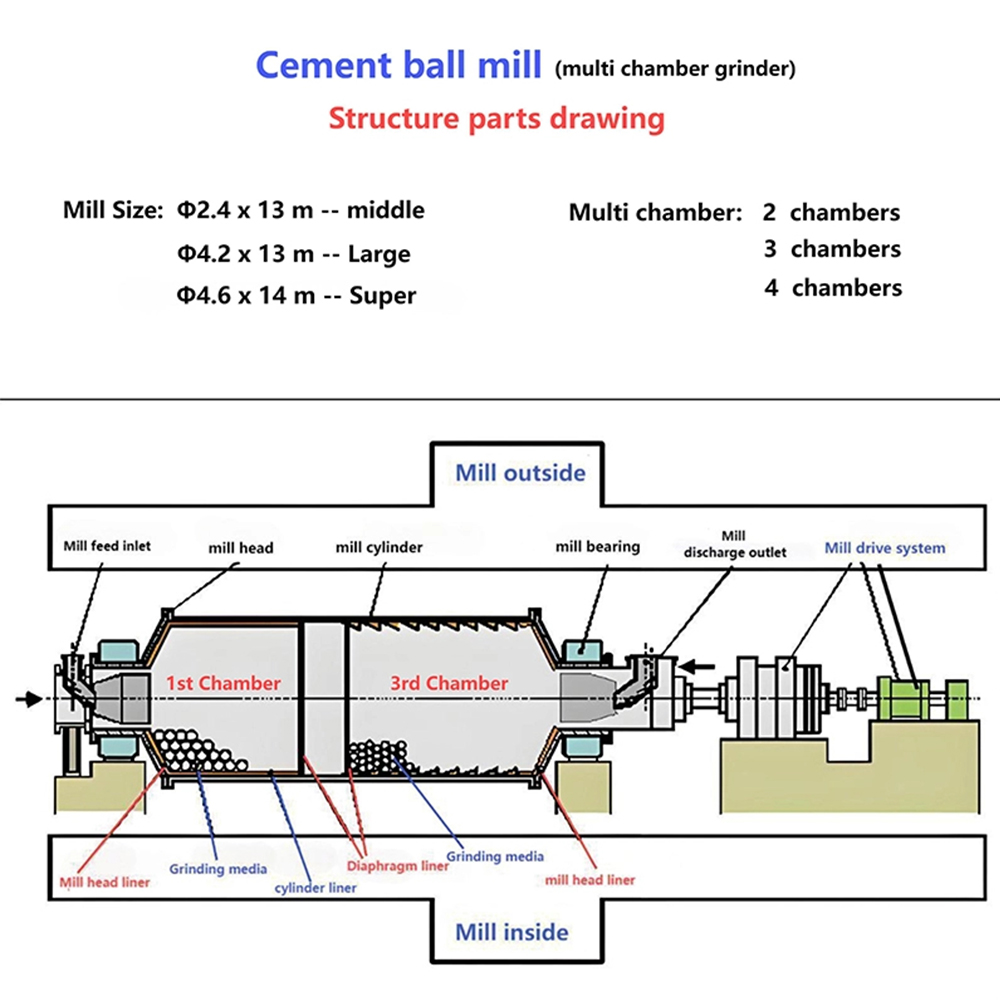

A cement ball mill is a multi-chamber grinder, also known as a tube grinder. When the aspect ratio is above 4, it is called a long mill or tube mill. Medium and long mills are generally divided into 2-4 compartments internally and are commonly used in cement plants.
A tube mill is an important piece of fine grinding equipment in modern industry and is one of the most common and important devices in grinding systems. Large tube mills have high production capacity. The tube mill has the characteristics of high crushing ratio, high production capacity, strong adaptability to materials, and easy replacement of worn parts. The main components of a tube mill include: cylinder, feeding section, unloading section, transmission section, etc.
The grinding media (balls or cylpebs) are a kind of carrier used in a ball mill to help crush & grinding minerals. For a cement ball mill, the first chamber will used large size balls or cylpebs, and the second chamber will use small-size cylpebs. The cylpebs is cylinder shape, this shapes grinding efficiency is better than small size balls. And the super high chromium (Cr: 16-28%) cast grinding balls and cylpebs have high hardness (HRC 58-67) and less grinding media consumption; it is the best choice for cement and other high hardness minerals such as Lead-Zinc ore and Quartz sand.

PREV：High Hardness & Wear-Resistant Φ30mm High Chromium Cast Grinding Ball for Tower Mill NEXT：No next article

Core Features
Application Scenarios
Product Characteristics
Customization Options

Product Advantage

Lower consumption cost
Because high-chromium grinding media have higher hardness than forged steel cylpebs and can be made with different chromium contents (10-28%), their consumption will be only 25%-65% of forged steel & lower-chrome casting cylpebs used in Ball mills. For some special minerals that have the highest hardness, such as Quartz sand, choose Top chromium (Cr: 23-28%) cast grinding media; the media consumption cost will be much less than other kinds of grinding media.

Higher hardness

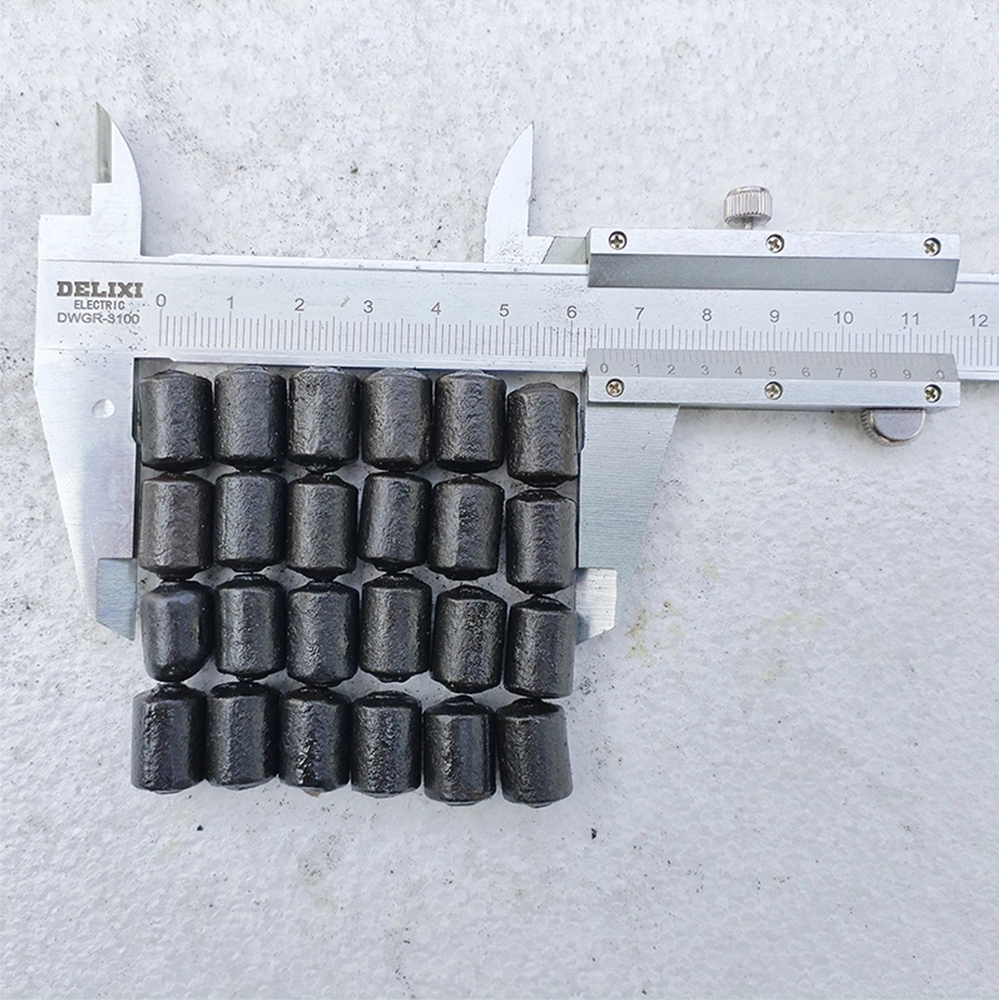

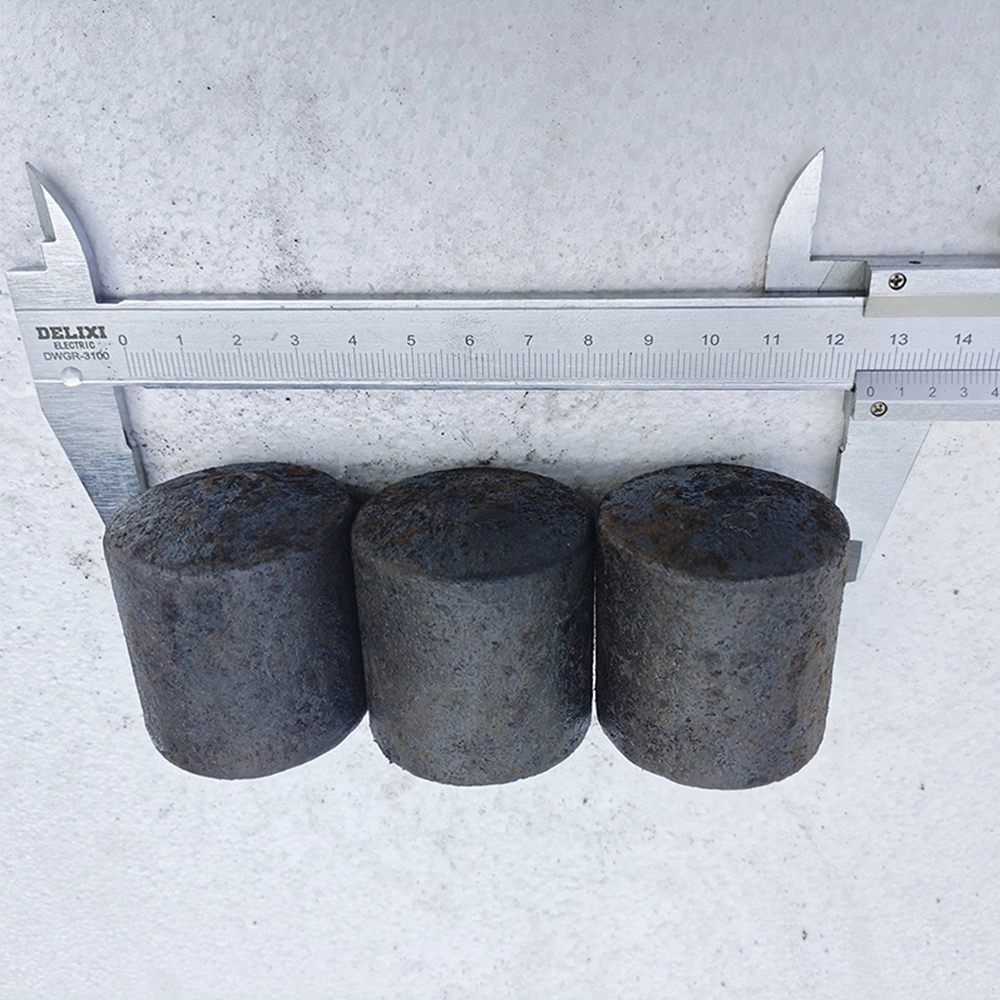

High Chrome cast grinding media casting cylinders processed with special heat treatment (Oil quench & annealing) will have the highest hardness ( HRC 64- 67). Small-size Φ6*6 - Φ30*35 mm casting cylinder hardness can be HRC 66, and Φ30*35 - Φ55*60 mm cast cylinders hardness can be made to HRC64; it’s the highest hardness among other kinds of material grinding media. And this cast high chrome cylinders surface & core hardness difference is less than HRC 2.

Customized alloy Steel composition
NGZR foundry can match customer’s required to readjust the Chemical Composition of Chromium content (1.0-30%) and other usdful alloying element such as C /Mn/ Si/ Cu/ Ni/ Mo etc, with special heat-treatment processing, which can make this casting grinding cylinders get different thechnical paramenters, such as hardness / Impact Value / Breakage and de-shaping rate / micro- structure / high PH degree of acid or alkali resistant/high temperature resistance etc, to match customer’s special requirements.

Customized grinding media shape
NGZR can develop and make different shapes of grinding media, such as: Grinding ball (Sphere) / Grinding cylpebs ( Cylinder) / Grinding egg ( Ellipsoid) / Polyhedron Shape and other special customized shapes. Different shape grinding media will have better grinding effect with different grinding conditions.

Lower breakage & out-of-roundness rate
Depending on controlling raw material quality / advanced casting production equipment & special heat-treatment processing, the high chrome grinding cylinders product of NGZR has good Physical Property, large size cast grinding media breakage & Out-of-roundness rate will be less than 1%; small-size casting ball breakage & Out-of-roundness rate will be less than 0.5%.

Alloy Chemical Composition:
Cast grinding ball Name	Item	Chemical Composition ( % )
		C	Si	Mn	Cr	Mo	Cu	Ni	P	S
Top Chrome	ZQCr23	2.1-3.3	≤1.2	0.2-1.5	23 - 30	≤1.0	≤1.0	≤1.0	≤0.06	≤0.06
Super Chrome	ZQCr18	2.1-3.5	≤1.2	0.2-1.5	18 - 23	≤1.0	≤1.0	≤1.0	≤0.06	≤0.06
High Chrome	ZQCr10	2.1-3.6	≤1.2	0.2-1.5	10 - 15	≤1.0	≤1.0	≤1.0	≤0.06	≤0.06
Middle Chrome	ZQCr 5	2.1-3.6	≤1.5	0.2-1.5	4.0-6.0	≤1.0	≤0.8	-	≤0.08	≤0.08
Low Chrome	ZQCr 1	2.1-3.6	≤1.5	0.2-1.5	1.0-3.0	≤1.0	≤0.8	-	≤0.10	≤0.10

Product Physical Technical:
Cast grinding ball Name	Item	Physical Technical
		Surface Hardness	Breakage Rate	Impact fatigue Falling ball times	Impact Value ( J /cm2 )	Micro- structure
High Chrome Ultra	ZQCr23	HRC ≥ 62	≤ 1.0 %	≥ 15000	≥ 3.0	M +C
High Chrome Plus	ZQCr18	HRC ≥ 60	≤ 1.0 %	≥ 15000	≥ 3.0	M +C
High Chrome	ZQCr10	HRC ≥ 58	≤ 1.0 %	≥ 15000	≥ 3.0	M +C
Middle Chrome	ZQCr 5	HRC ≥ 47	≤ 2.0 %	≥ 8000	≥ 2.0	P +C
Low Chrome	ZQCr 1	HRC ≥ 45	≤ 2.0 %	≥ 8000	≥1.6	P +C
Remark: M= Martensite ; C= Carbide ; P= Pearlite ; AF= Acicular Ferrite ; GJS= spheroidal graphite

Existing Product Size & Tolerance:

Product Size

Φ（mm）

Φ6 / Φ8 /Φ10 Φ12.5/ Φ15/

Φ17.5 /Φ20 / Φ25/ Φ30

Φ40 / Φ50

/Φ60

Φ70 /

Φ80

Φ90 /

Φ100

Φ110 /

Φ120

Φ125/Φ130/

Φ140 /Φ150

Diameter Tolerance

+ 1.0 mm

- 1.0 mm

+ 1.5 mm

- 1.0 mm

+ 2.0 mm

- 1.0 mm

+ 2.5 mm

- 1.0 mm

+ 3.0 mm

- 1.0 mm

+ 3.5 mm

- 2.0 mm

Remark: NGZR can customize any ball size from Φ6 to Φ150 mm by casting ;

Product Weight:
Size (mm)	Φ6*8	Φ8*10	Φ10*12	Φ12*14	Φ14*16	Φ16*18	Φ18*20	Φ20*25
Weight (kg /pcs)	0.002	0.006	0.011	0.017	0.025	0.035	0.050	0.095
Q’ty (pcs) per mt	500,000	150,000	90,000	55,000	38,000	26,000	20,000	10,000
55*60
Size (mm)	Φ25*30	Φ30*35	Φ35*40	Φ40*45	Φ45*50	Φ50*55	Φ55*60	Φ60*70
Weight (kg/pcs)	0.165	0.260	0.4	0.55	0.765	1.02	1.32	2.1
Q’ty (pcs) per mt	6000	3800	2500	1800	1300	980	750	476
